A variational autoencoder (VAE) is a generative model that combines ideas from deep learning and Bayesian inference to learn a structured latent space from data. Introduced by Diederik P. Kingma and Max Welling in their 2013 paper "Auto-Encoding Variational Bayes," the VAE provides a principled framework for learning latent representations while simultaneously enabling the generation of new data samples. Unlike a standard autoencoder, which maps inputs to fixed points in latent space, a VAE maps inputs to probability distributions, making the latent space continuous and suitable for sampling.
VAEs have become one of the foundational architectures in modern generative modeling, sitting alongside generative adversarial networks (GANs) and diffusion models as core approaches to learning data distributions.

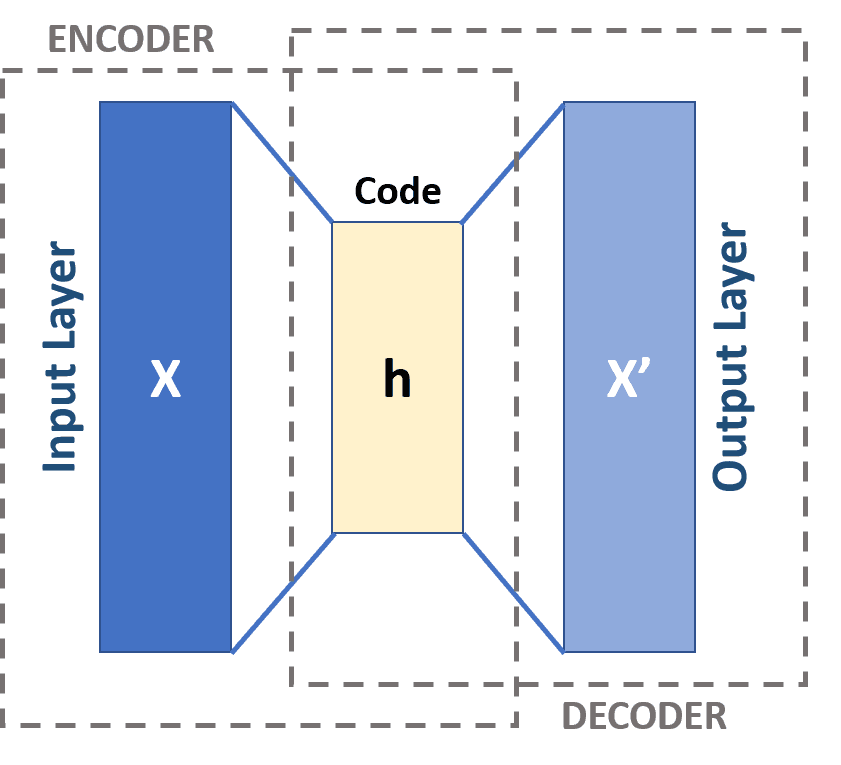

Before VAEs, standard autoencoders were widely used for dimensionality reduction and feature learning. A standard autoencoder consists of an encoder network that compresses input data into a lower-dimensional representation (the latent code) and a decoder network that reconstructs the input from this code. While effective for compression and reconstruction, standard autoencoders have a significant limitation: their latent spaces are not structured in a way that supports meaningful generation. Points sampled randomly from a standard autoencoder's latent space typically do not decode into realistic outputs because the encoder has no incentive to organize the space smoothly.
The core insight behind VAEs is to impose a probabilistic structure on the latent space. By requiring the encoder to output parameters of a probability distribution rather than a single point, and by regularizing these distributions to match a known prior (typically a standard Gaussian), VAEs ensure that the latent space is smooth and continuous. This makes it possible to sample from the latent space and decode the samples into coherent, realistic data points.

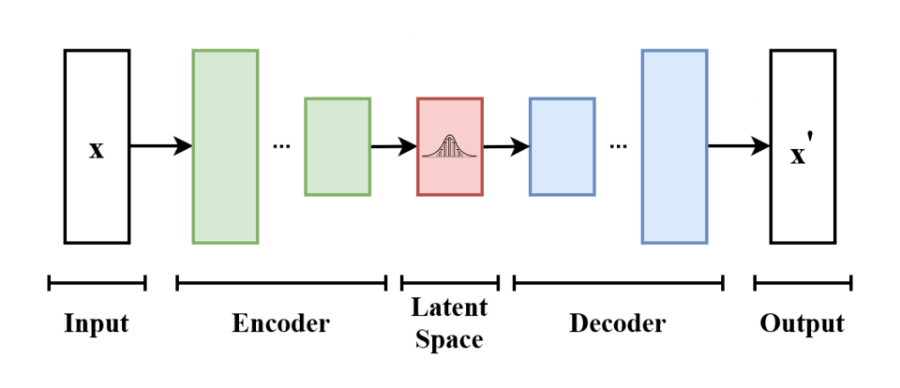

A VAE consists of three main components: an encoder network, a latent sampling layer, and a decoder network.
The encoder, also called the inference network or recognition network, takes an input x and produces the parameters of a probability distribution over latent variables z. In the most common formulation, the encoder outputs two vectors: a mean vector mu and a log-variance vector log(sigma^2). Together, these define a multivariate Gaussian distribution q(z|x) that approximates the true posterior distribution p(z|x).
The encoder can be implemented with any differentiable architecture appropriate for the data type. For image data, convolutional neural networks (CNNs) are typical. For sequential data, recurrent neural networks (RNNs) or Transformers may be used.
The latent space in a VAE is the space of latent variables z. Each data point is associated not with a single point in this space but with a probability distribution. During training, the model samples z from the distribution q(z|x) parameterized by the encoder. The dimensionality of the latent space is a hyperparameter chosen by the practitioner, and it is typically much smaller than the input dimensionality.
The prior distribution p(z) is usually chosen to be a standard multivariate Gaussian N(0, I), where I is the identity matrix. This choice is both mathematically convenient and practically effective, as it provides a simple, smooth structure that the encoder's output distributions are regularized to approximate.
The decoder takes a latent sample z and produces the parameters of the data distribution p(x|z). For continuous data such as images, the decoder typically outputs the mean of a Gaussian distribution (with the reconstruction loss acting as the negative log-likelihood). For binary or discrete data, the decoder may output Bernoulli or categorical parameters.
Like the encoder, the decoder can be implemented with any suitable neural network architecture. The encoder and decoder together form a bottleneck structure, with the latent space acting as an information-constraining bridge between them.
One of the key technical contributions of the VAE paper is the reparameterization trick, which solves a fundamental problem in training the model. During the forward pass, the model must sample z from the distribution q(z|x). Sampling is a stochastic operation, and standard backpropagation cannot compute gradients through a random sampling step.
The reparameterization trick addresses this by expressing the random variable z as a deterministic, differentiable function of the distribution parameters and an independent noise variable. Specifically, instead of sampling z directly from N(mu, sigma^2), the model samples epsilon from a standard normal distribution N(0, 1) and then computes:
z = mu + sigma * epsilon
This transformation moves the source of randomness (epsilon) outside the computational graph of the model parameters, making the entire pipeline differentiable with respect to mu and sigma. Gradients can then flow through the sampling step during backpropagation, enabling end-to-end training with stochastic gradient descent (SGD).
The reparameterization trick is not limited to Gaussian distributions. It can be applied to any distribution that can be expressed as a deterministic transformation of a fixed base distribution plus learnable parameters. However, the Gaussian case remains by far the most common in practice.
The VAE is trained by maximizing the evidence lower bound (ELBO), also known as the variational lower bound. The ELBO provides a tractable lower bound on the log-marginal likelihood (log-evidence) of the data, log p(x), which is the quantity we would ideally maximize but which is intractable to compute directly for complex models.
The ELBO can be decomposed into two terms:
ELBO = E[log p(x|z)] - D_KL(q(z|x) || p(z))
where the expectation is taken over z sampled from q(z|x).
| Term | Name | Role |
|---|---|---|
| E[log p(x|z)] | Reconstruction loss | Measures how well the decoder reconstructs the input from the latent code. Encourages the model to encode useful information in z. |
| D_KL(q(z|x) || p(z)) | KL divergence regularizer | Measures how far the encoder's output distribution deviates from the prior. Encourages the latent space to remain smooth and organized. |
Maximizing the ELBO is equivalent to simultaneously maximizing reconstruction quality and minimizing the KL divergence between the approximate posterior and the prior. In practice, the loss function is typically written as a minimization problem (negative ELBO), with the reconstruction loss and KL divergence as additive terms.
The KL divergence term D_KL(q(z|x) || p(z)) has an analytical closed-form solution when both the approximate posterior and the prior are Gaussian. For a latent space of dimensionality J, the KL divergence is:
D_KL = -0.5 * sum(1 + log(sigma_j^2) - mu_j^2 - sigma_j^2)
for j = 1 to J.
This term acts as a regularizer that prevents the encoder from simply memorizing each input as a narrow spike in latent space. By penalizing distributions that deviate from the standard Gaussian prior, the KL term encourages the latent space to be continuous (nearby points decode to similar outputs) and complete (every point in the latent space decodes to a plausible output).
A well-known training challenge with VAEs is posterior collapse, which occurs when the KL divergence term dominates the optimization and the encoder learns to output distributions that are nearly identical to the prior regardless of the input. When this happens, the latent code carries almost no information about the input, and the decoder essentially learns to model the marginal distribution p(x) independently of z.
Posterior collapse is especially common when the decoder is very powerful (for example, an autoregressive decoder) because the decoder can achieve reasonable reconstruction quality without relying on the latent code. Several strategies have been proposed to address this problem, including KL annealing (gradually increasing the weight of the KL term during training), free bits (setting a minimum value for the KL term per latent dimension), and architectural modifications.
The following table summarizes the key differences between standard autoencoders and variational autoencoders.
| Feature | Standard autoencoder | Variational autoencoder |
|---|---|---|
| Latent representation | Deterministic point | Probability distribution (mean and variance) |
| Latent space structure | Unstructured; may have gaps and discontinuities | Smooth, continuous, regularized by KL divergence |
| Loss function | Reconstruction loss only | Reconstruction loss + KL divergence (ELBO) |
| Generative capability | Poor; random samples typically produce unrealistic outputs | Good; samples from the prior decode into plausible data |
| Training objective | Minimize reconstruction error | Maximize evidence lower bound (ELBO) |
| Sampling | Not designed for sampling | Designed for sampling from the latent prior |
| Use cases | Dimensionality reduction, denoising, feature learning | Data generation, interpolation, anomaly detection, representation learning |
Generative adversarial networks (GANs) are another major family of generative models. While both VAEs and GANs learn to generate new data, they differ significantly in architecture, training, and output quality.
| Aspect | VAE | GAN |
|---|---|---|
| Architecture | Encoder-decoder with latent distributions | Generator-discriminator adversarial pair |
| Training | Stable; single loss function (ELBO) | Can be unstable; requires balancing generator and discriminator |
| Mode coverage | Tends to cover all modes of the data distribution | Susceptible to mode collapse (ignoring parts of the distribution) |
| Output quality | Often produces blurrier outputs due to pixel-wise reconstruction loss | Typically produces sharper, more realistic outputs |
| Latent space | Explicitly structured and regularized | Implicitly learned; less interpretable |
| Likelihood estimation | Provides a lower bound on log-likelihood | Does not directly estimate likelihood |
| Ease of training | Generally easier and more stable | Requires careful hyperparameter tuning |
| Interpolation | Smooth interpolation in latent space | Interpolation possible but less principled |
GANs tend to produce higher-fidelity images, while VAEs provide better latent space organization and more stable training. Hybrid models such as VAE-GAN combine elements of both approaches to capture the strengths of each.
Since the original VAE paper, numerous variants have been developed to address limitations and extend the model's capabilities.
Introduced by Higgins et al. (2017), the beta-VAE modifies the standard ELBO by multiplying the KL divergence term with a hyperparameter beta:
Loss = E[log p(x|z)] - beta * D_KL(q(z|x) || p(z))
When beta > 1, the model places greater emphasis on learning disentangled latent representations, where individual latent dimensions correspond to independent, interpretable factors of variation in the data. The beta-VAE has been influential in research on disentangled representation learning.
The conditional VAE extends the standard VAE by conditioning both the encoder and decoder on additional information, such as class labels. This allows the model to generate data with specific attributes. For example, a CVAE trained on handwritten digits can generate samples of a specific digit class by conditioning on the desired label.
Introduced by van den Oord et al. (2017), the VQ-VAE replaces the continuous latent space with a discrete codebook of learned embedding vectors. The encoder maps inputs to the nearest codebook entry, and the decoder reconstructs from the quantized representation. VQ-VAE avoids the posterior collapse problem that affects standard VAEs and produces higher-quality outputs. The follow-up model VQ-VAE-2 demonstrated image generation quality competitive with GANs.
The Wasserstein VAE replaces the KL divergence with the Wasserstein distance as the regularization term, which can provide better training dynamics in some settings.
NVAE (Nouveau VAE), introduced by Vahdat and Kautz (2020), is a deep hierarchical VAE architecture that achieves state-of-the-art image generation quality among pure VAE models. It uses a carefully designed architecture with residual cells, batch normalization, and spectral regularization.
| Variant | Key modification | Primary advantage |
|---|---|---|
| Beta-VAE | Weighted KL term (beta > 1) | Disentangled latent representations |
| Conditional VAE | Conditioning on labels or attributes | Controlled generation |
| VQ-VAE | Discrete latent codebook | Avoids posterior collapse; higher quality |
| Wasserstein VAE | Wasserstein distance regularization | Improved training dynamics |
| NVAE | Deep hierarchical architecture | State-of-the-art VAE image quality |
| VAE-GAN | Combines VAE with GAN discriminator | Sharper outputs with structured latent space |
VAEs have found applications across a wide range of domains due to their ability to learn structured latent representations and generate new data.
VAEs can generate new images by sampling from the latent prior distribution and decoding the samples. The smooth structure of the latent space enables image interpolation (generating images that smoothly transition between two endpoints) and attribute manipulation (modifying specific properties of an image by moving along learned directions in latent space). While pure VAEs often produce somewhat blurry images compared to GANs, advanced variants like NVAE and VQ-VAE-2 have significantly closed this quality gap.
In computational chemistry and drug discovery, VAEs are used to learn continuous representations of molecular structures. Researchers encode molecules (represented as SMILES strings or molecular graphs) into a latent space and then sample or optimize within that space to discover new molecules with desired properties such as binding affinity or drug-likeness. Gomez-Bombarelli et al. (2018) demonstrated this approach in their influential paper on automatic chemical design.
VAEs are effective tools for anomaly detection. The model is trained on normal data, and anomalies are identified as data points with high reconstruction error or low ELBO values. This approach is particularly valuable in medical imaging, where VAEs trained on healthy tissue images can flag regions with abnormal features (such as tumors) based on poor reconstruction quality. It has also been applied to fraud detection and industrial quality control.
VAEs have been applied to natural language processing tasks including text generation, sentence interpolation, and style transfer. Bowman et al. (2016) introduced a VAE for text that encodes sentences into a continuous latent space, enabling smooth interpolation between sentences and generation of novel sentences by sampling. However, posterior collapse is a common challenge in text VAEs because autoregressive decoders can often ignore the latent code.
VAEs have been used for music generation and audio synthesis. Google's MusicVAE learns a latent space over short musical sequences, enabling interpolation between melodies and rhythmic patterns. Roberts et al. (2018) demonstrated that hierarchical decoder architectures can improve the quality of long-form musical generation with VAEs.

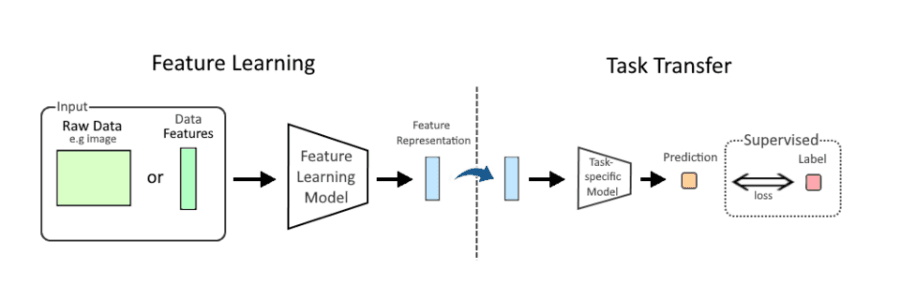

Beyond generation, VAEs serve as powerful tools for learning compact, informative representations of data. The latent representations learned by VAEs are useful as features for downstream tasks such as classification, clustering, and semi-supervised learning. The disentangled representations learned by beta-VAE and its variants are especially valuable for interpretability and controllability.
The theoretical justification for the VAE rests on variational inference, a technique from Bayesian statistics. The goal is to approximate the intractable posterior distribution p(z|x) with a tractable parametric family q(z|x). The ELBO arises from Jensen's inequality applied to the log-marginal likelihood:
log p(x) >= E_q[log p(x|z)] - D_KL(q(z|x) || p(z)) = ELBO
Maximizing the ELBO with respect to both the encoder parameters (phi) and decoder parameters (theta) simultaneously improves the approximation quality and the generative model. The gap between log p(x) and the ELBO equals D_KL(q(z|x) || p(z|x)), which is the KL divergence between the approximate and true posteriors. As the approximation improves, this gap shrinks.
Kingma and Welling's key contribution was showing that this optimization can be performed efficiently using the reparameterization trick combined with stochastic gradient descent, making it practical to train deep generative models with millions of parameters on large datasets.
Training a VAE involves several practical decisions and potential pitfalls.
| Consideration | Details |
|---|---|
| Latent dimensionality | Higher dimensions allow more expressive representations but may lead to unused dimensions. Typical values range from 2 (for visualization) to several hundred. |
| KL annealing | Gradually increasing the KL weight from 0 to 1 during training helps prevent posterior collapse by allowing the model to first learn useful encodings before enforcing regularization. |
| Reconstruction loss | Binary cross-entropy is used for binary data; mean squared error (MSE) is common for continuous data. The choice significantly affects output quality. |
| Batch size | Larger batches provide more stable gradient estimates for both the reconstruction and KL terms. |
| Learning rate | Standard values (1e-3 to 1e-4) with Adam optimizer are typical. |
| Architecture depth | Deeper encoders and decoders generally improve capacity, but require careful initialization and normalization. |
The VAE paper by Kingma and Welling has been cited over 25,000 times and is one of the most influential papers in modern machine learning. The framework established by VAEs influenced subsequent work on normalizing flows, hierarchical latent variable models, and the theoretical foundations of diffusion models. The latent diffusion model architecture used in Stable Diffusion, for instance, uses a VAE encoder-decoder to compress images into a lower-dimensional latent space where the diffusion process operates.
Simultaneously and independently, Rezende et al. (2014) developed the closely related "deep latent Gaussian model" using a similar reparameterization approach, further validating the core ideas behind variational autoencoders.
