See also: Machine learning terms
A convolutional neural network (CNN or ConvNet) is a type of neural network specifically designed for processing grid-like data, such as images, speech signals, and time series data. CNNs have achieved remarkable results in various tasks, particularly in the field of image recognition, speech recognition, and video analysis. The architecture of CNNs is inspired by the organization of the animal visual cortex and consists of multiple layers of interconnected neurons, which allow the network to learn hierarchical feature representations.
CNNs are a cornerstone of modern deep learning and computer vision. Unlike traditional neural networks with only fully connected layers, CNNs exploit the spatial structure of input data through local connectivity, shared weights, and spatial pooling. These design principles dramatically reduce the number of parameters compared to fully connected architectures, making CNNs both computationally efficient and resistant to overfitting when trained on image data.
The success of CNNs in the 2012 ImageNet Large Scale Visual Recognition Challenge (ILSVRC) marked a turning point for deep learning. Since then, CNN-based models have become the standard approach for most visual recognition tasks and have found applications well beyond computer vision, including natural language processing, audio analysis, genomics, and drug discovery.
The development of convolutional neural networks spans several decades, beginning with neuroscience research in the 1950s and 1960s and continuing through modern deep learning breakthroughs.
The conceptual roots of CNNs trace back to the work of David Hubel and Torsten Wiesel, who studied the visual cortex of cats in 1959. Their experiments revealed that individual neurons in the visual cortex respond to stimuli in a restricted region of the visual field known as the receptive field, and that these fields overlap to cover the entire visual area. They also discovered two types of cells: simple cells, which respond to edge-like patterns in specific orientations, and complex cells, which are spatially invariant and respond to patterns regardless of exact position. This hierarchical organization of simple and complex cells directly inspired the layered architecture of CNNs.
In 1969, Kunihiko Fukushima introduced a model based on the simple and complex cell concept. This work laid the groundwork for his more influential contribution that followed.
In 1980, Kunihiko Fukushima proposed the Neocognitron, a self-organizing neural network model for visual pattern recognition. The Neocognitron introduced the fundamental architectural ideas that would define CNNs: alternating layers of "S-cells" (analogous to simple cells, performing feature extraction) and "C-cells" (analogous to complex cells, providing spatial invariance through pooling). The network was arranged hierarchically so that earlier layers detected simple features like edges while deeper layers recognized increasingly complex patterns.
The Neocognitron used unsupervised learning to train its feature detectors. While it demonstrated the viability of hierarchical feature extraction for pattern recognition, its unsupervised training approach limited its practical accuracy on complex tasks.
The modern CNN was born when Yann LeCun combined the architectural ideas of the Neocognitron with supervised training via backpropagation. In 1989, LeCun and colleagues at AT&T Bell Labs applied backpropagation to a convolutional network for handwritten digit recognition. This work led to LeNet-5 (1998), a CNN architecture that included convolutional layers, subsampling (pooling) layers, and fully connected layers trained end-to-end with gradient descent.
LeNet-5 was deployed commercially by banks and postal services in the United States for reading handwritten checks and ZIP codes. It demonstrated that CNNs could achieve practical, real-world performance. The architecture consisted of two convolutional layers (with 5x5 filters), two average pooling layers, and three fully connected layers, totaling approximately 60,000 parameters.
Despite its success, the field of neural networks entered a period of reduced interest during the late 1990s and 2000s, as support vector machines (SVMs) and other methods were competitive with or outperformed neural networks on many benchmarks. Limited computing power and small training datasets also constrained the scale of networks that could be trained effectively.
The breakthrough that reignited interest in CNNs came in 2012 when AlexNet, designed by Alex Krizhevsky, Ilya Sutskever, and Geoffrey Hinton, won the ImageNet Large Scale Visual Recognition Challenge (ILSVRC) with a top-5 error rate of 15.3%, far ahead of the second-place entry at 26.2%. This 10.8 percentage-point improvement was unprecedented.
AlexNet was significantly deeper and larger than LeNet-5, containing five convolutional layers, three fully connected layers, and approximately 60 million parameters. Several technical innovations contributed to its success:
AlexNet's victory is widely regarded as the starting point of the modern deep learning era.
The VGG network, developed by Karen Simonyan and Andrew Zisserman at the University of Oxford, demonstrated that network depth is a critical factor for performance. VGGNet used a uniform architecture consisting entirely of 3x3 convolutional filters stacked in increasing depth. The key insight was that a stack of two 3x3 convolution layers has the same effective receptive field as a single 5x5 layer, but with fewer parameters and more nonlinearity.
The two most well-known variants are VGG-16 (16 weight layers) and VGG-19 (19 weight layers), with approximately 138 million and 144 million parameters respectively. VGG-16 achieved a top-5 error rate of 7.3% on ImageNet. Despite its large parameter count and computational cost, VGGNet became widely used as a feature extractor in transfer learning because of its simple, regular architecture and strong generalization.
GoogLeNet, developed by Christian Szegedy and colleagues at Google, introduced the Inception module, a novel building block that applied multiple filter sizes (1x1, 3x3, 5x5) and a max pooling operation in parallel, then concatenated their outputs. This approach allowed the network to capture features at multiple scales simultaneously.
A key innovation in GoogLeNet was the use of 1x1 convolutions as dimensionality reduction bottlenecks before the larger filters. This drastically reduced computational cost. GoogLeNet achieved a top-5 error rate of 6.7% on ImageNet with only about 6.8 million parameters (roughly 12 times fewer than AlexNet), demonstrating that architectural design could be more important than raw network size.
Subsequent versions of the Inception architecture (Inception v2, v3, and v4) incorporated batch normalization, factorized convolutions (replacing larger filters with sequences of smaller asymmetric filters), and label smoothing.
ResNet (Residual Network), introduced by Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun at Microsoft Research, solved the degradation problem that had limited the training of very deep networks. As networks grew deeper, training accuracy actually degraded, not because of overfitting, but because of optimization difficulties.
ResNet introduced the residual connection (also called a skip connection or shortcut connection), which added the input of a block directly to its output. Instead of learning the desired mapping H(x) directly, each block learned the residual function F(x) = H(x) - x. This formulation made it easier for layers to learn identity mappings when needed, enabling the training of networks with hundreds or even thousands of layers.
ResNet-152 won the ILSVRC 2015 challenge with a top-5 error rate of 3.57%, surpassing human-level performance (estimated at approximately 5.1% by Andrej Karpathy). Variants ranged from ResNet-18 to ResNet-1001. The residual connection concept became one of the most influential ideas in deep learning and was adopted in virtually all subsequent architectures.
DenseNet (Densely Connected Convolutional Networks), proposed by Gao Huang, Zhuang Liu, Laurens van der Maaten, and Kilian Q. Weinberger, extended the idea of shortcut connections. In DenseNet, each layer receives feature maps from all preceding layers in a dense block and passes its own feature maps to all subsequent layers. This dense connectivity pattern encouraged feature reuse, strengthened gradient flow, and substantially reduced the number of parameters compared to ResNets of similar performance.
DenseNet-121, with only about 8 million parameters, achieved comparable or better accuracy than ResNet-101 (which has roughly 44.5 million parameters) on ImageNet.
| Architecture | Year | Depth (Layers) | Parameters (Approx.) | ImageNet Top-5 Error | Key Innovation |
|---|---|---|---|---|---|
| Neocognitron | 1980 | ~9 | N/A | N/A | Hierarchical S-cells and C-cells |
| LeNet-5 | 1998 | 7 | 60K | N/A | Backpropagation-trained CNN |
| AlexNet | 2012 | 8 | 60M | 15.3% | ReLU, GPU training, dropout |
| VGG-16 | 2014 | 16 | 138M | 7.3% | Uniform 3x3 filters, depth |
| GoogLeNet | 2014 | 22 | 6.8M | 6.7% | Inception module, 1x1 convolutions |
| ResNet-152 | 2015 | 152 | 60M | 3.57% | Residual (skip) connections |
| DenseNet-121 | 2017 | 121 | 8M | ~5.0% | Dense connectivity, feature reuse |
| SE-ResNet-152 | 2017 | 152 | 66.8M | ~4.5% | Squeeze-and-excitation blocks |
| EfficientNet-B7 | 2019 | N/A | 66M | 2.9% | Compound scaling |
| ConvNeXt-XL | 2022 | N/A | 350M | ~1.0% (Top-1: 87.8%) | Modernized pure CNN design |
A typical CNN architecture consists of several types of layers stacked sequentially. Each layer performs a specific operation to transform the input data into a more abstract and discriminative representation. The standard pipeline includes convolutional layers for feature extraction, pooling layers for spatial reduction, activation functions for nonlinearity, normalization layers for training stability, and fully connected layers for classification or regression.
The input layer receives raw data and feeds it into the network. For image classification tasks, the input is typically a three-dimensional tensor with dimensions height x width x channels. Color images have three channels (red, green, blue), while grayscale images have one. Common input sizes include 224x224 (VGG, ResNet), 299x299 (Inception v3), and 384x384 (EfficientNet-B7). The input is usually preprocessed through normalization (subtracting the mean and dividing by the standard deviation) or scaling pixel values to the range [0, 1] or [-1, 1].

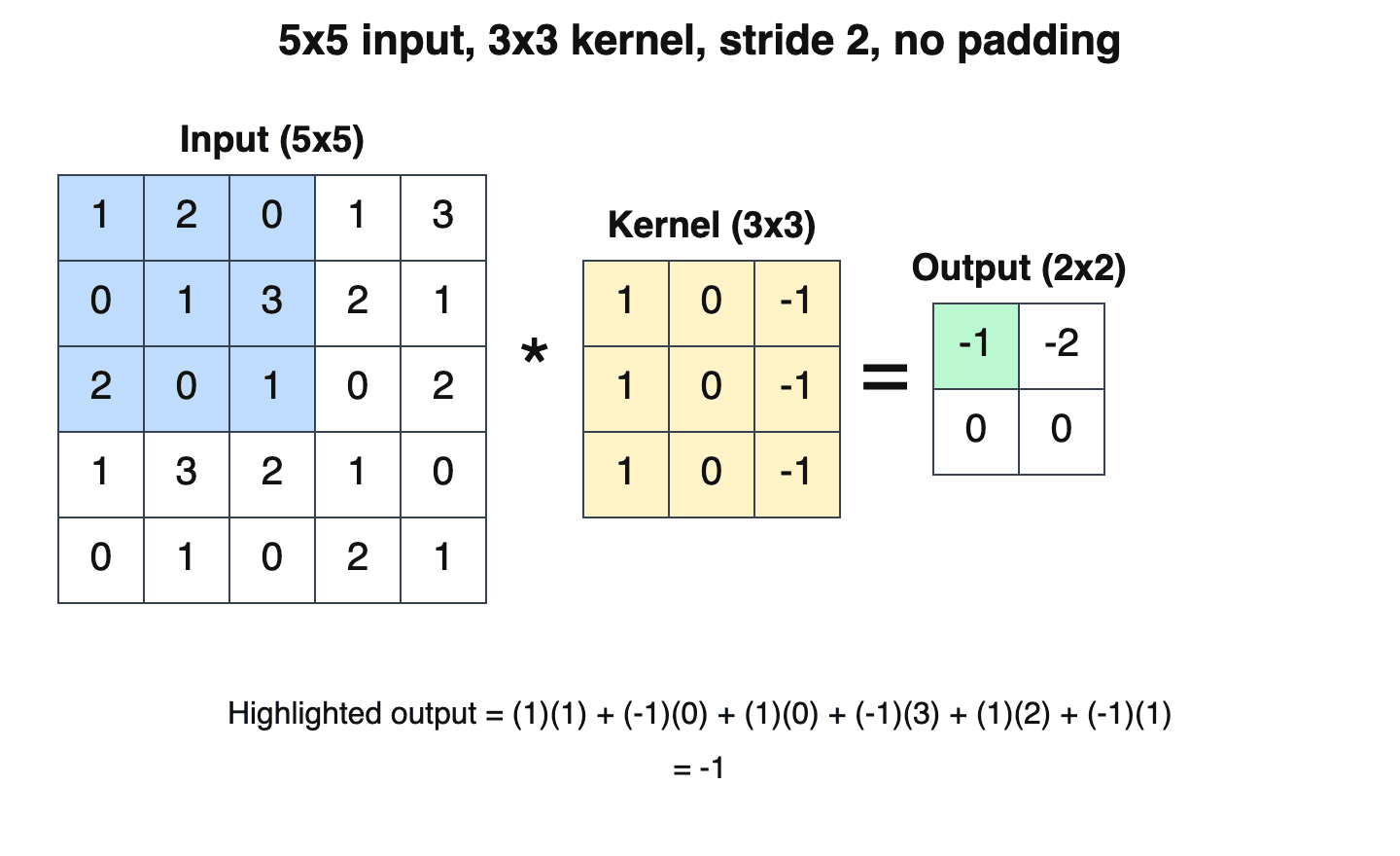

The convolutional layer is the core building block of a CNN. It consists of a set of learnable filters (also called kernels) that are spatially small but extend through the full depth of the input volume. Each filter slides (convolves) across the spatial dimensions of the input, computing element-wise multiplications and summing the results to produce a two-dimensional activation map (also called a feature map). If a layer has K filters, it produces K feature maps, which are stacked along the depth dimension to form the output volume.
Three hyperparameters control the spatial dimensions of the output feature maps:
Two properties distinguish convolutional layers from fully connected layers and make CNNs efficient:
For a convolutional layer with K filters of size FxF applied to an input with C channels, the total number of learnable parameters is K x (F x F x C + 1), where the +1 accounts for the bias term per filter.
Two related but distinct properties are central to understanding how CNNs handle spatial information:
Translation equivariance means that shifting the input produces a correspondingly shifted output. The convolution operation is inherently equivariant: if a cat moves from the left side of an image to the right, the resulting feature maps shift by the same amount. This property arises from weight sharing, because the same learned filters are applied at every spatial position.
Translation invariance means that the output remains the same regardless of where in the input a pattern appears. CNNs gain approximate translation invariance through pooling layers, which summarize local regions of feature maps. After successive rounds of pooling, small shifts in the input have diminishing effects on the pooled outputs. Global average pooling at the end of a network produces a representation that is fully invariant to the spatial location of features.
In practice, modern CNNs are equivariant in their convolutional stages and approximately invariant in their final classification layers. This combination allows the network to detect features regardless of their position while still preserving enough spatial information for tasks like object detection and segmentation.
After each convolution, a nonlinear activation function is applied element-wise to the output feature maps. Without nonlinearity, stacking multiple convolutional layers would be equivalent to a single linear transformation, limiting the representational power of the network.
| Activation Function | Formula | Properties |
|---|---|---|
| Sigmoid | f(x) = 1 / (1 + e^(-x)) | Output in (0,1); suffers from vanishing gradients |
| Tanh | f(x) = (e^x - e^(-x)) / (e^x + e^(-x)) | Output in (-1,1); zero-centered but still saturates |
| ReLU | f(x) = max(0, x) | Fast computation; sparse activation; can cause "dying ReLU" problem |
| Leaky ReLU | f(x) = max(0.01x, x) | Addresses dying ReLU by allowing small negative gradients |
| ELU | f(x) = x if x > 0, else a(e^x - 1) | Smooth near zero; negative values push mean closer to zero |
| GELU | f(x) = x * P(X <= x) | Used in Transformers; smooth approximation of ReLU |
| Swish / SiLU | f(x) = x * sigmoid(x) | Smooth, non-monotonic; used in EfficientNet and many modern architectures |
ReLU became the default choice after AlexNet because it does not saturate for positive values, allows faster convergence during training, and produces sparse activations. Variants like Leaky ReLU, ELU, and GELU address some of ReLU's limitations and are used in specific contexts.

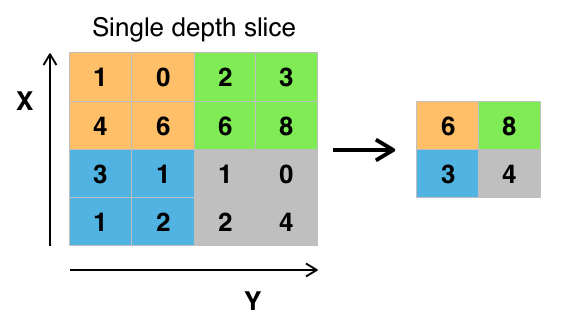

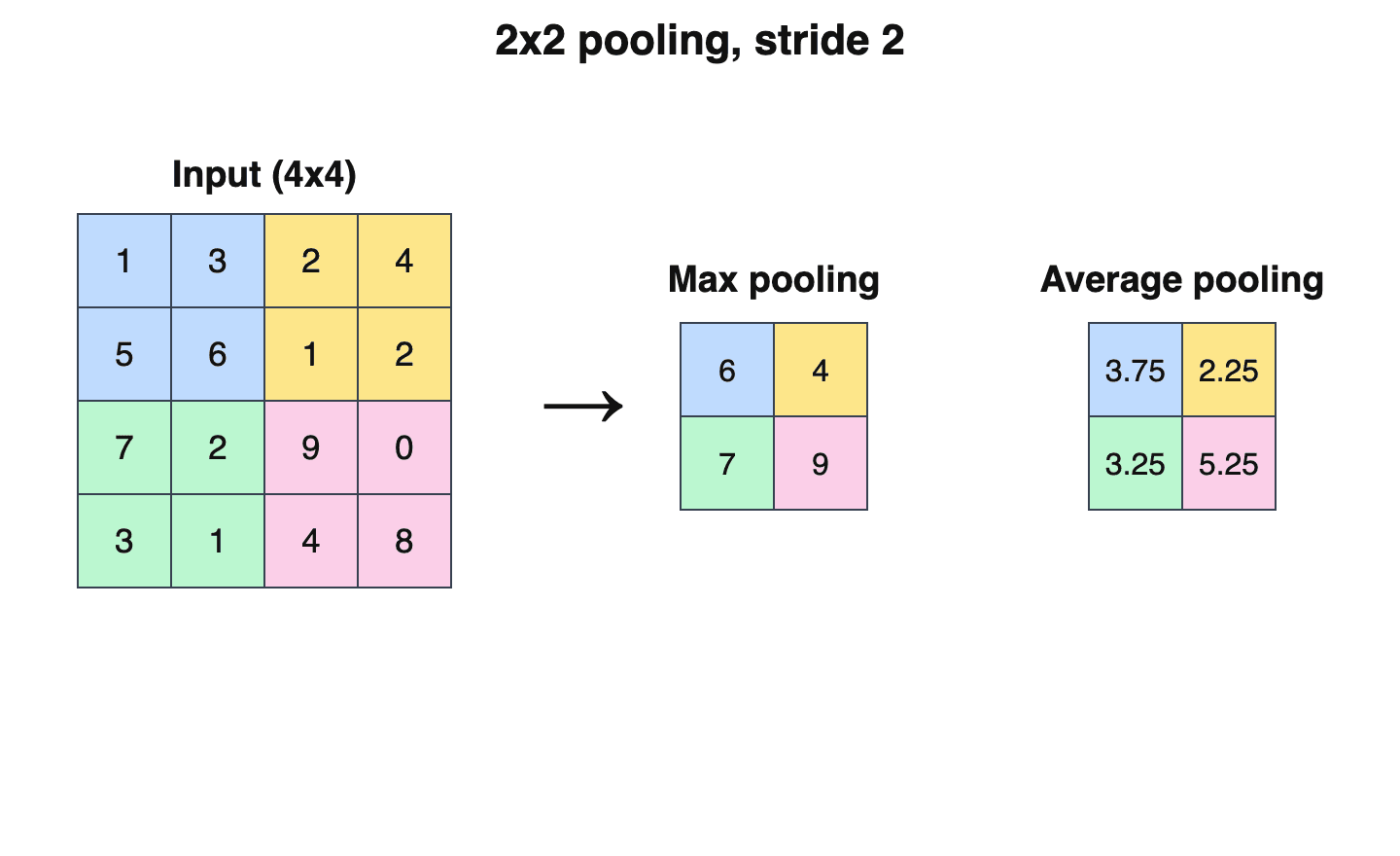

The pooling layer reduces the spatial dimensions of feature maps, which decreases computational cost, reduces the number of parameters in subsequent layers, and provides a degree of translation invariance. Pooling operates independently on each depth slice of the input.
Modern architectures have moved away from aggressive pooling in favor of strided convolutions for downsampling, but global average pooling remains standard as the final spatial reduction step before classification.
Batch normalization (BatchNorm), introduced by Sergey Ioffe and Christian Szegedy in 2015, normalizes the activations of each layer to have zero mean and unit variance across the mini-batch. For each channel, BatchNorm computes:
y = gamma * (x - mean) / sqrt(variance + epsilon) + beta
where gamma and beta are learnable scale and shift parameters, and epsilon is a small constant for numerical stability.
BatchNorm provides several benefits: it allows higher learning rates, reduces sensitivity to weight initialization, and acts as a mild regularizer. It became a standard component in nearly all CNN architectures after 2015.
Other normalization methods include:
The fully connected layer (also called a dense layer) connects every neuron in one layer to every neuron in the next. In traditional CNN architectures (AlexNet, VGG), one or more fully connected layers appear at the end of the network to map the high-level feature representations to the output classes. For a classification task with N classes, the final fully connected layer has N output neurons, each producing a raw score (logit) for one class.
A softmax function is typically applied to the logits to produce a probability distribution over classes. For binary classification tasks, a sigmoid function may be used instead.
Many modern architectures (ResNet, EfficientNet, ConvNeXt) replace all but the final fully connected layer with global average pooling, reducing the parameter count and the risk of overfitting.
The output layer provides the final predictions of the network. For classification, it produces class probabilities via softmax. For regression tasks (such as predicting bounding box coordinates in object detection), the output layer uses a linear activation. For semantic segmentation, the output is a dense pixel-wise prediction map with the same spatial dimensions as the input.
The receptive field of a neuron in a CNN is the region of the original input that influences that neuron's activation. Understanding receptive fields is essential for designing networks that capture the right amount of spatial context for a given task.
In the first convolutional layer, each neuron's receptive field equals the filter size (for example, 3x3 pixels). As data passes through successive convolutional and pooling layers, the effective receptive field of deeper neurons grows progressively larger. A neuron in the second layer of a network with 3x3 filters has a 5x5 receptive field on the input, because its 3x3 window covers outputs that each look at a 3x3 region of the input, with overlapping coverage.
For a simple sequential network, the receptive field after L layers of convolution with filter size F and stride 1 can be approximated as:
Receptive field = L x (F - 1) + 1
Stride and pooling operations increase the receptive field more rapidly. A stride-2 operation doubles the rate at which the receptive field grows in all subsequent layers.
Research by Luo et al. (2016) showed that the effective receptive field (the region that meaningfully contributes to a neuron's output) is significantly smaller than the theoretical receptive field. The effective receptive field has a Gaussian-like distribution, concentrated near the center, and only occupies a fraction of the full theoretical region. This finding has practical implications: simply stacking more layers does not guarantee that the network actually uses information from the full theoretical receptive field.
For dense prediction tasks like semantic segmentation, the receptive field must be large enough to capture object-level or scene-level context. Architectures address this requirement through pooling pyramids (PSPNet), dilated convolutions (DeepLab), or very deep networks.
Several technical innovations have driven the improvement of CNN architectures over the past decade.
Residual connections, introduced in ResNet (2015), add the input of a block directly to its output: y = F(x) + x, where F represents the nonlinear transformations in the block. This simple addition allows gradients to flow directly through the skip connection during backpropagation, alleviating the vanishing gradient problem and enabling the training of networks with hundreds of layers.
The principle of shortcut connections has been extended in various ways. Pre-activation ResNets (He et al., 2016) moved batch normalization and ReLU before the convolution. ResNeXt (Xie et al., 2017) replaced standard residual blocks with aggregated transformations using grouped convolutions. Wide Residual Networks (Zagoruyko and Komodakis, 2016) demonstrated that increasing the width of residual blocks could be more effective than increasing depth.
As described in the normalization section, batch normalization transformed CNN training by stabilizing and accelerating convergence. Before BatchNorm, training deep networks required careful initialization, low learning rates, and extensive hyperparameter tuning. With BatchNorm, practitioners could use learning rates 10 to 100 times larger while achieving faster convergence and improved generalization.
Depthwise separable convolutions, popularized by MobileNet (Howard et al., 2017), decompose a standard convolution into two separate operations:
The total parameter count is C x F x F + K x C, compared to K x F x F x C for a standard convolution. For a 3x3 filter producing 256 output channels from 256 input channels, depthwise separable convolution uses roughly 9 times fewer parameters and requires 8 to 9 times fewer multiply-add operations.
This factorization is the backbone of lightweight architectures designed for mobile and edge deployment, including MobileNet, Xception (Chollet, 2017), and the depthwise convolution layers in ConvNeXt.
Dilated convolutions, also known as atrous convolutions (from the French "a trous," meaning "with holes"), increase the receptive field of a filter without increasing the number of parameters or reducing spatial resolution. A standard convolution applies its kernel elements to adjacent input positions. A dilated convolution inserts gaps between kernel elements, controlled by a dilation rate (or rate parameter) r.
For a kernel of size k with dilation rate r, the effective kernel size becomes:
k_effective = k + (k - 1)(r - 1)
A 3x3 kernel with dilation rate 1 behaves as a standard 3x3 convolution. With dilation rate 2, the same 3x3 kernel covers a 5x5 area on the input (with gaps between the sampled positions). With dilation rate 4, it covers a 9x9 area. The number of parameters remains the same (9 for a 3x3 kernel) regardless of the dilation rate.
Dilated convolutions are especially important for dense prediction tasks like semantic segmentation, where the network needs to produce per-pixel outputs while maintaining a large receptive field. The DeepLab architecture (Chen et al., 2017) uses Atrous Spatial Pyramid Pooling (ASPP), which applies dilated convolutions at multiple rates in parallel and concatenates the results. This allows the network to capture context at several spatial scales without downsampling the feature maps.
Stacking dilated convolutions with exponentially increasing rates (1, 2, 4, 8, ...) can produce exponential receptive field growth with only linear parameter growth, a principle used in architectures like WaveNet for audio generation and Multi-Scale Context Aggregation networks for segmentation.
Squeeze-and-Excitation Networks (Hu et al., 2018) introduced channel attention mechanisms into CNNs. An SE block recalibrates channel-wise feature responses by:
SE blocks can be added to any existing architecture with minimal additional parameters and consistently improve accuracy. SE-ResNet-152 won the ILSVRC 2017 classification challenge.
EfficientNet (Tan and Le, 2019) introduced compound scaling, a principled method for scaling CNN architectures along three dimensions simultaneously: depth (number of layers), width (number of channels), and resolution (input image size). The key insight was that scaling any single dimension yields diminishing returns, but scaling all three together with a fixed ratio produces better results.
The EfficientNet family was developed by first finding a small, efficient baseline architecture (EfficientNet-B0) using neural architecture search (NAS), then scaling it up using compound scaling to create EfficientNet-B1 through B7. EfficientNet-B7 achieved state-of-the-art accuracy on ImageNet (84.3% top-1) while being 8.4 times smaller and 6.1 times faster than the best existing CNN at the time.
Neural Architecture Search automates the design of network architectures. Instead of hand-designing layer configurations, NAS uses search algorithms (reinforcement learning, evolutionary methods, or gradient-based approaches) to find optimal architectures within a defined search space. NASNet (Zoph et al., 2018) and EfficientNet both used NAS to discover their base architectures. While computationally expensive, NAS has produced architectures that outperform human-designed networks on several benchmarks.
While the most common CNN applications process 2D images, the convolutional architecture generalizes naturally to data of other dimensionalities.
1D CNNs apply one-dimensional convolutions where the kernel slides along a single axis. This makes them well suited for sequential and temporal data, including:
1D CNNs have the same advantages as their 2D counterparts (parameter sharing, local feature extraction, hierarchical representation) but operate along a single spatial or temporal axis.
The standard CNN, described throughout most of this article, uses 2D convolutions that slide the kernel across the height and width of the input. This is the dominant form for image-related tasks.
3D CNNs extend the convolution operation to three spatial (or spatiotemporal) dimensions. The kernel slides across height, width, and depth (or time), producing a 3D feature map. Primary applications include:
3D CNNs are more computationally expensive than 2D CNNs because the additional dimension multiplies both the parameter count per filter and the number of multiply-add operations. As a result, architectures for video analysis often use factorized approaches, such as (2+1)D convolutions that separate spatial and temporal processing (Tran et al., 2018).
MobileNet (Howard et al., 2017) is a family of lightweight CNN architectures designed for mobile and embedded devices. MobileNet V1 relies on depthwise separable convolutions to reduce computational cost. MobileNet V2 (Sandler et al., 2018) introduced inverted residuals with linear bottlenecks: rather than compressing and then expanding channels as in standard residual blocks, V2 expands the channel dimension with a 1x1 convolution, applies a depthwise 3x3 convolution, and then projects back to a lower dimension. MobileNet V3 (Howard et al., 2019) used NAS to further optimize the architecture and added squeeze-and-excitation blocks and the h-swish activation function.
| MobileNet Version | Year | Parameters | ImageNet Top-1 Accuracy | Key Feature |
|---|---|---|---|---|
| MobileNet V1 | 2017 | 4.2M | 70.6% | Depthwise separable convolutions |
| MobileNet V2 | 2018 | 3.4M | 72.0% | Inverted residuals, linear bottlenecks |
| MobileNet V3-Large | 2019 | 5.4M | 75.2% | NAS-optimized, SE blocks, h-swish |
As described above, the EfficientNet family uses compound scaling to balance depth, width, and resolution. EfficientNet-B0 serves as the baseline, and each subsequent model (B1 through B7) scales up all three dimensions proportionally. The architecture builds on MobileNet V2's inverted residual blocks enhanced with SE blocks.
EfficientNet V2 (Tan and Le, 2021) improved training speed by using a combination of Fused-MBConv (which replaces the depthwise 3x3 + pointwise 1x1 with a single regular 3x3 convolution in early stages) and progressive learning (gradually increasing image size and regularization strength during training). EfficientNet V2 achieved better accuracy than V1 while training 5 to 11 times faster.
ConvNeXt, introduced by Zhuang Liu, Hanzi Mao, Chao-Yuan Wu, Christoph Feichtenhofer, Trevor Darrell, and Saining Xie at Meta AI and UC Berkeley, asked the question: can a pure CNN compete with Vision Transformers when given the same training recipes and design choices? Starting from a standard ResNet-50, the authors systematically modernized the architecture by adopting design elements that had proven effective in Transformers:
ConvNeXt demonstrated that a pure convolutional architecture, when properly modernized, can match or exceed the performance of Swin Transformers at various scales. ConvNeXt-B achieved 83.8% top-1 accuracy on ImageNet, comparable to Swin-B (83.5%). ConvNeXt V2 (2023) further improved results by adding a Global Response Normalization (GRN) layer and using a masked autoencoder (MAE) pretraining strategy.
CNNs have been successfully applied to a wide range of tasks across many domains.
Image classification, the task of assigning a label to an entire image from a fixed set of categories, is the most traditional CNN application. CNNs extract hierarchical features from raw pixels and map them to class probabilities. Architectures like ResNet, EfficientNet, and ConvNeXt are the standard backbones for image classification tasks. On ImageNet, the best CNN models achieve over 90% top-1 accuracy when pretrained on larger datasets.
Object detection requires identifying and localizing multiple objects in an image, producing both class labels and bounding box coordinates. CNN-based object detectors fall into two categories:
Modern object detectors often use Feature Pyramid Networks (FPN) to handle objects at different scales by combining feature maps from multiple stages of the CNN backbone.
Semantic segmentation assigns a class label to every pixel in an image. Fully Convolutional Networks (FCNs), introduced by Long, Shelhamer, and Darrell in 2015, adapted classification CNNs for dense prediction by replacing fully connected layers with convolutional layers. Subsequent architectures include:
CNNs have transformed medical image analysis. Applications include:
Transfer learning from ImageNet-pretrained CNNs has been especially impactful in medical imaging, where labeled datasets are often small. Fine-tuning a pretrained ResNet or EfficientNet on a few thousand medical images frequently outperforms training from scratch, because the early layers' learned edge and texture detectors transfer well across visual domains.
| Domain | Application | CNN Role |
|---|---|---|
| Autonomous Driving | Lane detection, pedestrian detection, traffic sign recognition | Real-time visual perception from camera feeds |
| Natural Language Processing | Text classification, sentiment analysis | 1D convolutions over word embeddings |
| Audio and Speech | Speech recognition, music genre classification | 2D convolutions over spectrograms |
| Robotics | Grasping, navigation, visual servoing | Real-time scene understanding |
| Satellite Imagery | Land use classification, deforestation monitoring | Classification and segmentation of aerial images |
| Gaming and Entertainment | Real-time style transfer, super-resolution | Image-to-image translation |
| Drug Discovery | Molecular property prediction | Convolutions over molecular graph representations |
Data augmentation artificially expands the training set by applying random transformations to training images, improving generalization and reducing overfitting. Common augmentation techniques include:
Transfer learning is the practice of using a model pretrained on a large dataset (typically ImageNet) as the starting point for a new task. This approach is effective because the early layers of a CNN learn general, transferable features (edges, textures, colors) that are useful across many visual tasks.
Two common transfer learning strategies exist:
Transfer learning has made it practical to achieve strong results on tasks with limited labeled data. Pretrained models from PyTorch (torchvision), TensorFlow/Keras, and timm (PyTorch Image Models) provide ready-to-use CNN backbones.
Beyond data augmentation, several regularization methods help prevent overfitting:
CNNs are typically trained using variants of stochastic gradient descent (SGD) or adaptive learning rate optimizers:
Learning rate scheduling is important for CNN training. Common schedules include step decay (reducing the learning rate by a factor at fixed epochs), cosine annealing (smoothly decaying the learning rate following a cosine curve), and warm-up (linearly increasing the learning rate from a small value over the first few epochs before applying the main schedule).
The introduction of the Vision Transformer (ViT) by Dosovitskiy et al. in 2020 challenged the dominance of CNNs in computer vision. ViT splits an image into fixed-size patches, linearly embeds them, and processes the sequence of patch embeddings with a standard Transformer encoder that uses self-attention mechanisms.
| Property | CNNs | Vision Transformers |
|---|---|---|
| Inductive bias | Strong spatial priors (locality, translation equivariance) | Minimal; learns spatial relationships from data |
| Data efficiency | More efficient with limited data due to inductive biases | Requires large datasets or pretraining; fewer assumptions aid scalability |
| Computational pattern | Local operations; efficient for inference | Global self-attention; quadratic cost with respect to token count |
| Scalability | Performance gains plateau at very large scale | Continues to improve with more data and compute |
| Feature hierarchy | Built-in via successive pooling | Learned; some hybrid models add explicit hierarchy |
| Inference speed | Generally faster for equivalent accuracy on standard hardware | Can be slower due to attention computation; optimized implementations closing gap |
| Edge deployment | Mature tooling; well-optimized libraries (TensorRT, CoreML) | Growing support; larger memory footprint can be a constraint |
Key findings from the comparison:
The current state of the field suggests that both CNNs and Vision Transformers will continue to coexist. The choice between them depends on the specific task, available data, computational budget, and deployment constraints. Hybrid architectures that combine convolutional and attention-based layers are increasingly common, drawing on the strengths of both paradigms.
Imagine you are looking at a picture of a cat. A convolutional neural network (CNN) is like a computer that looks at the picture the same way you do, but in steps.
First, it looks at tiny pieces of the picture, like small squares, and asks simple questions: "Is there an edge here? Is this area dark or light?" It uses the same set of questions for every tiny piece, sliding across the whole picture. These are called filters.
Then it takes the answers from all those tiny pieces and combines them into a smaller, simpler picture. Maybe now it can see shapes like circles and lines. This step is called pooling.
It keeps doing this over and over: looking at small pieces, combining answers, and making the picture simpler. Each time, it understands bigger things. First edges, then shapes, then ears and whiskers, and finally, "That is a cat!"
The clever part is that the CNN learns which questions to ask by practicing on thousands of pictures. Nobody tells it to look for whiskers. It figures that out on its own by seeing many cats and non-cats and learning what makes them different.
CNNs are used in lots of real-world technology, including face recognition on your phone, self-driving cars that spot pedestrians and stop signs, and medical tools that help doctors find diseases in X-ray images.
