See also: neural network, activation function, loss function, hidden layer, softmax, backpropagation
The output layer is the final layer of a neural network that produces the model's prediction or result. It receives processed information from the preceding hidden layers and transforms it into a format suitable for the task at hand, whether that is classifying an image, predicting a numerical value, generating the next word in a sentence, or reconstructing a data sample. The design of the output layer, including the number of neurons and the choice of activation function, is determined entirely by the nature of the problem the network is built to solve.
Every neural network architecture, from a simple perceptron to a billion-parameter transformer, includes an output layer. Unlike hidden layers, where the number of neurons is a free hyperparameter chosen by the practitioner, the output layer's size is dictated by the structure of the problem. A binary classifier needs one output neuron, a 1,000-class image classifier needs 1,000 output neurons, and a regression model predicting three continuous values needs three output neurons. Choosing the wrong activation function or loss function pairing at the output layer is one of the most common sources of poor model performance, even when the rest of the architecture is well designed.
The concept of an output layer dates back to the earliest artificial neural networks. In 1943, Warren McCulloch and Walter Pitts proposed the binary artificial neuron as a logical model of biological neural networks. Their model used a threshold function to produce binary output (0 or 1), which can be seen as a primitive output layer.
Frank Rosenblatt introduced the perceptron in 1957-1958. His model consisted of three layers: a "retina" that distributed inputs to a second layer, "association units" that combined inputs with weights and applied a threshold step function, and an output layer that combined the values to produce a final decision. The perceptron's output layer could only produce binary decisions because it used a Heaviside step function. This limitation, along with the inability to solve non-linearly separable problems like XOR, contributed to the criticism raised by Minsky and Papert in their 1969 book Perceptrons.
Rosenblatt introduced the term "back-propagating error correction" in 1962, but he did not know how to implement it because his neurons used discrete output levels with zero derivatives. The development of practical backpropagation in the 1970s and 1980s, notably by Rumelhart, Hinton, and Williams (1986), required continuous, differentiable activation functions at the output layer. This led to the adoption of the sigmoid function for classification and, later, the softmax function for multi-class classification. John Bridle formally introduced the use of softmax as an output activation for neural network classifiers in 1990.

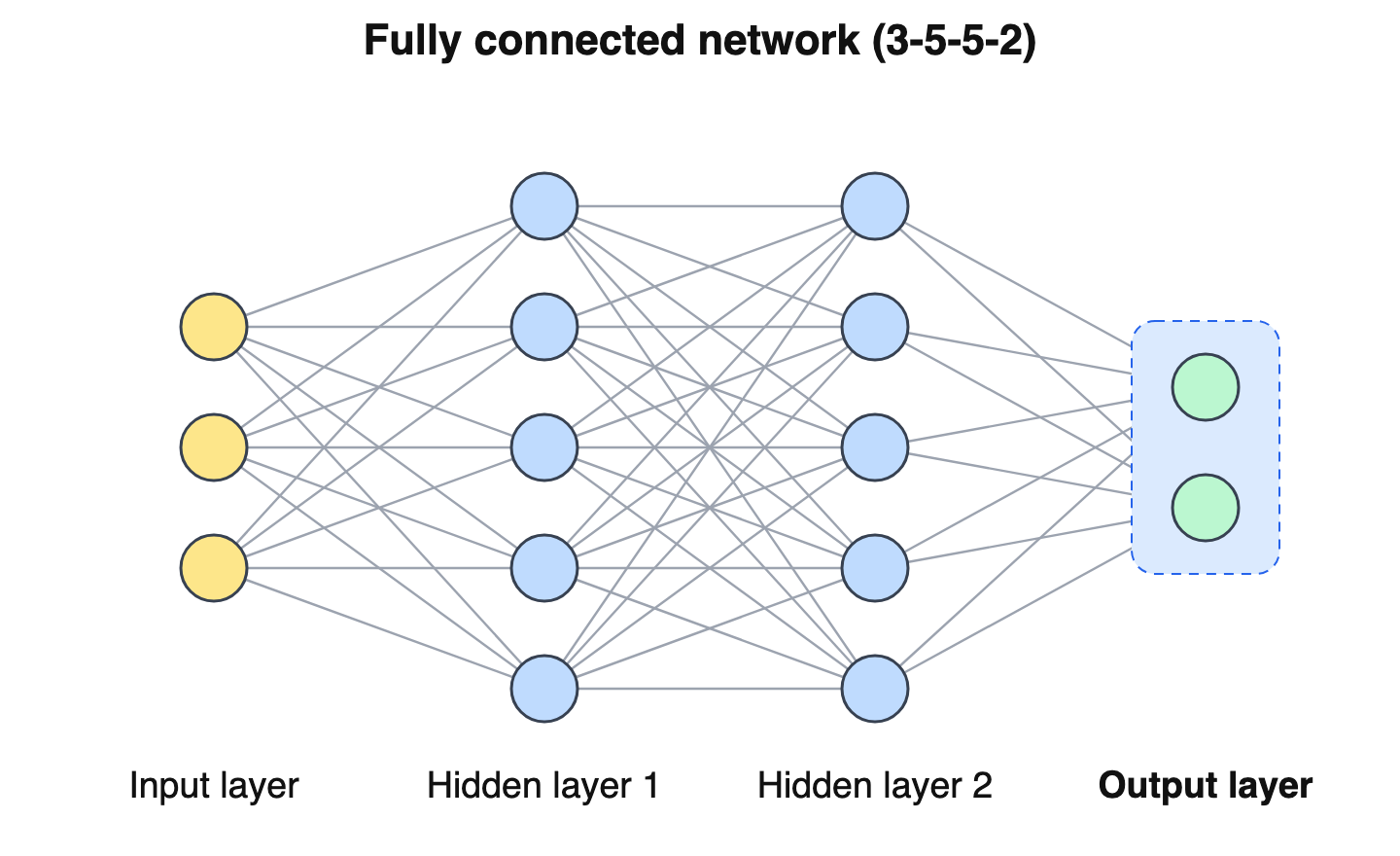

A typical neural network consists of three types of layers: the input layer, one or more hidden layers, and the output layer. Data flows from the input layer through the hidden layers, where features are extracted and transformed through successive nonlinear computations. The output layer sits at the end of this pipeline and is responsible for two things:
Because it directly interfaces with the loss function, the output layer's design has an outsized effect on whether a model trains effectively and converges to a good solution.
The output layer receives input from the last hidden layer and applies a transformation to produce the network's final output. This transformation consists of two steps: a linear operation (weighted sum plus bias) followed by an activation function.
Each neuron in the output layer computes a weighted sum of its inputs:
z_j = sum(w_ij * h_i) + b_j
where z_j is the pre-activation value (also called a "logit") for output neuron j, w_ij is the weight connecting hidden neuron i to output neuron j, h_i is the activation from hidden neuron i, and b_j is the bias term for output neuron j. In matrix notation, if the last hidden layer produces a vector h of dimension d, and there are k output neurons, the linear transformation is:
z = W^T * h + b
where W is a d x k weight matrix and b is a k-dimensional bias vector. The resulting vector z contains the raw, unnormalized scores (logits) that are then passed through an activation function.
The number of neurons in the output layer is determined by the task:
| Task type | Number of output neurons | Example |
|---|---|---|
| Binary classification | 1 | Spam vs. not spam |
| Multi-class classification (k classes) | k | Classifying digits 0-9 (10 neurons) |
| Multi-label classification (k labels) | k | Tagging an image with multiple attributes |
| Scalar regression | 1 | Predicting house price |
| Multi-output regression | n (one per predicted value) | Predicting bounding box coordinates (4 neurons) |
| Sequence generation (vocabulary size V) | V | Predicting the next token in a language model |
| Image segmentation (k classes) | k per pixel | Pixel-wise classification map |
The number of neurons in the output layer, the activation function applied to them, and the loss function used during training are tightly coupled to the prediction task. The table below summarizes the standard configurations.
| Task | Output neurons | Activation function | Loss function | Output range |
|---|---|---|---|---|
| Binary classification | 1 | Sigmoid | Binary cross-entropy | (0, 1) |
| Multi-class classification (single-label) | K (one per class) | Softmax | Categorical cross-entropy | (0, 1) per neuron; sum = 1 |
| Multi-label classification | K (one per label) | Sigmoid | Binary cross-entropy (per label) | (0, 1) per neuron |
| Regression (unbounded) | 1 (or more) | Linear (identity) | Mean squared error (MSE) | (-inf, +inf) |
| Regression (bounded 0 to 1) | 1 | Sigmoid | MSE or binary cross-entropy | (0, 1) |
In binary classification the goal is to assign each input to one of two classes (for example, spam versus not spam). The output layer uses a single neuron with the sigmoid function as its activation. The sigmoid squashes the neuron's raw output (the logit) into the range (0, 1), which is interpreted as the probability of the positive class. A threshold, typically 0.5, is applied to convert this probability into a hard class label.
The standard loss function for binary classification is binary cross-entropy, also called log loss:
L = -(1/n) * sum(y_i * log(y_hat_i) + (1 - y_i) * log(1 - y_hat_i))
It penalizes confident but wrong predictions more heavily than uncertain ones, which encourages the model to produce well-calibrated probabilities.
An alternative approach uses two output neurons with a softmax activation instead of one neuron with sigmoid. Both formulations are mathematically equivalent for two classes, but the single-neuron sigmoid approach is computationally cheaper and more widely used in practice.
Multi-class classification involves assigning each input to exactly one of K mutually exclusive classes (for example, recognizing a handwritten digit as one of 0 through 9). The output layer contains K neurons, one for each class, and applies the softmax function across all of them.
The softmax function converts the K raw output values (logits) into a probability distribution:
softmax(z_i) = exp(z_i) / sum(exp(z_j)) for j = 1 to K
The resulting probabilities are all between 0 and 1 and sum to exactly 1, which makes them interpretable as class membership probabilities. The class with the highest probability is selected as the prediction.
The paired loss function is categorical cross-entropy, defined as:
L = -sum(y_i * log(p_i)) for i = 1 to K
where y_i is the true label (1 for the correct class, 0 otherwise) and p_i is the predicted probability for class i. The gradient of the combined softmax and cross-entropy simplifies to p_i - y_i, which is the difference between the predicted and true distributions. This clean gradient makes training numerically stable and efficient.
In multi-label classification each input can belong to zero, one, or multiple classes simultaneously (for example, tagging a news article with topics like "politics," "economy," and "technology"). The output layer has K neurons, one per possible label, and each neuron uses an independent sigmoid activation.
Unlike softmax, where the outputs are coupled and must sum to 1, sigmoid treats each output neuron independently. Each neuron outputs a probability between 0 and 1 that represents whether that particular label applies. The loss function is binary cross-entropy applied independently to each label, and the total loss is the sum or average across all K labels.
At inference time, a threshold (commonly 0.5) is applied to each neuron separately. Any label whose predicted probability exceeds the threshold is included in the output set. Using softmax instead of sigmoid for multi-label classification is a common mistake: softmax forces the probabilities to sum to 1, which incorrectly implies that exactly one label must dominate.
For regression tasks the network predicts one or more continuous numerical values (for example, predicting a house price or a temperature reading). The output layer typically uses a linear (identity) activation function, meaning no transformation is applied to the raw weighted sum. This allows the output to take any real value from negative infinity to positive infinity.
The number of output neurons equals the number of values to be predicted. A single-output regression task uses one neuron; a multi-output regression task (such as predicting both latitude and longitude) uses multiple neurons.
The most common loss function for regression is mean squared error (MSE):
L = (1/n) * sum((y_i - y_hat_i)^2)

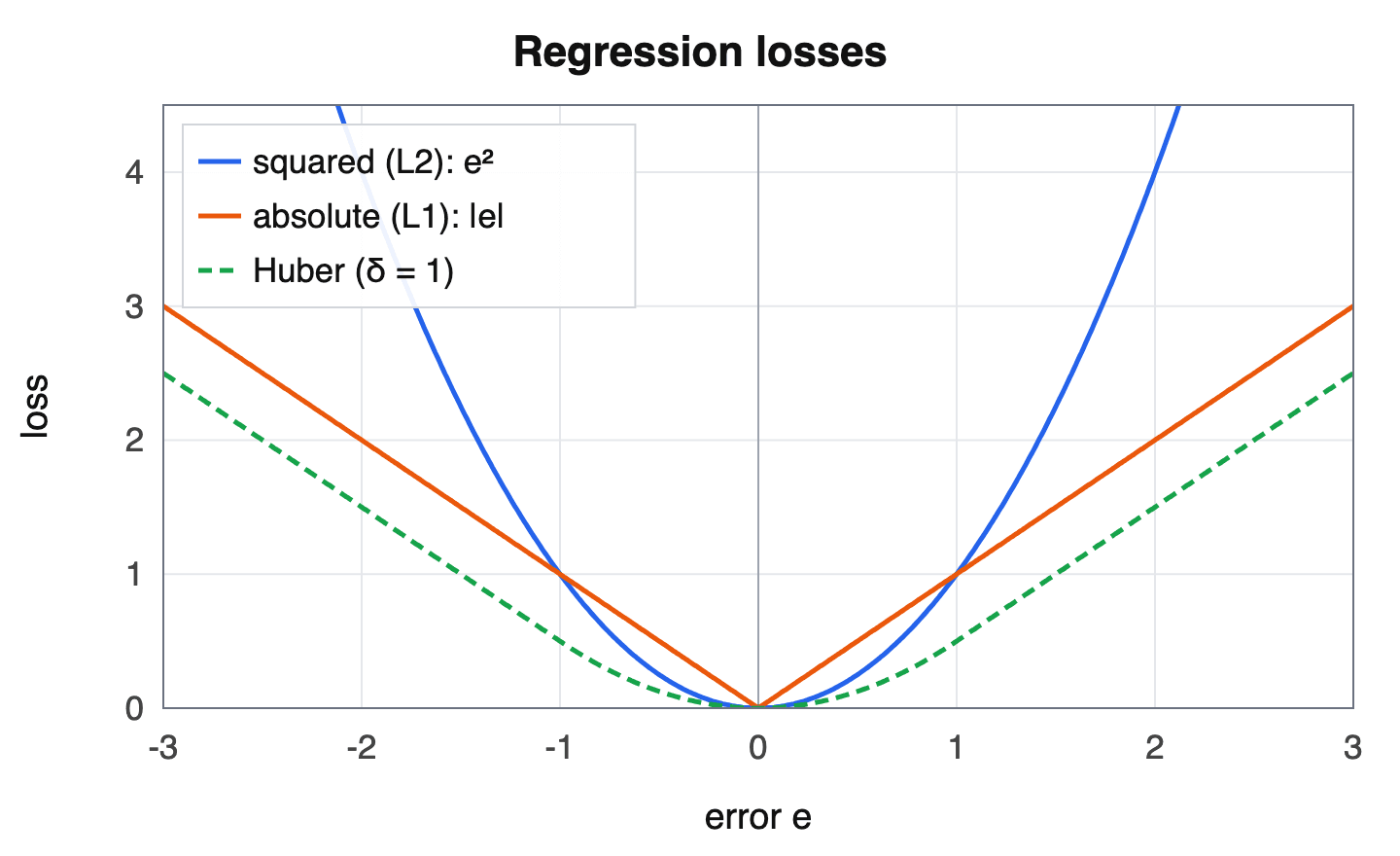

Alternatives include mean absolute error (MAE) and Huber loss, depending on how sensitive the task should be to outliers.
When the target value is known to fall within a bounded range, such as (0, 1), a sigmoid activation can be applied to the output neuron to enforce that constraint. Similarly, when outputs must be non-negative, a ReLU activation can be used, although this prevents the model from predicting negative values.

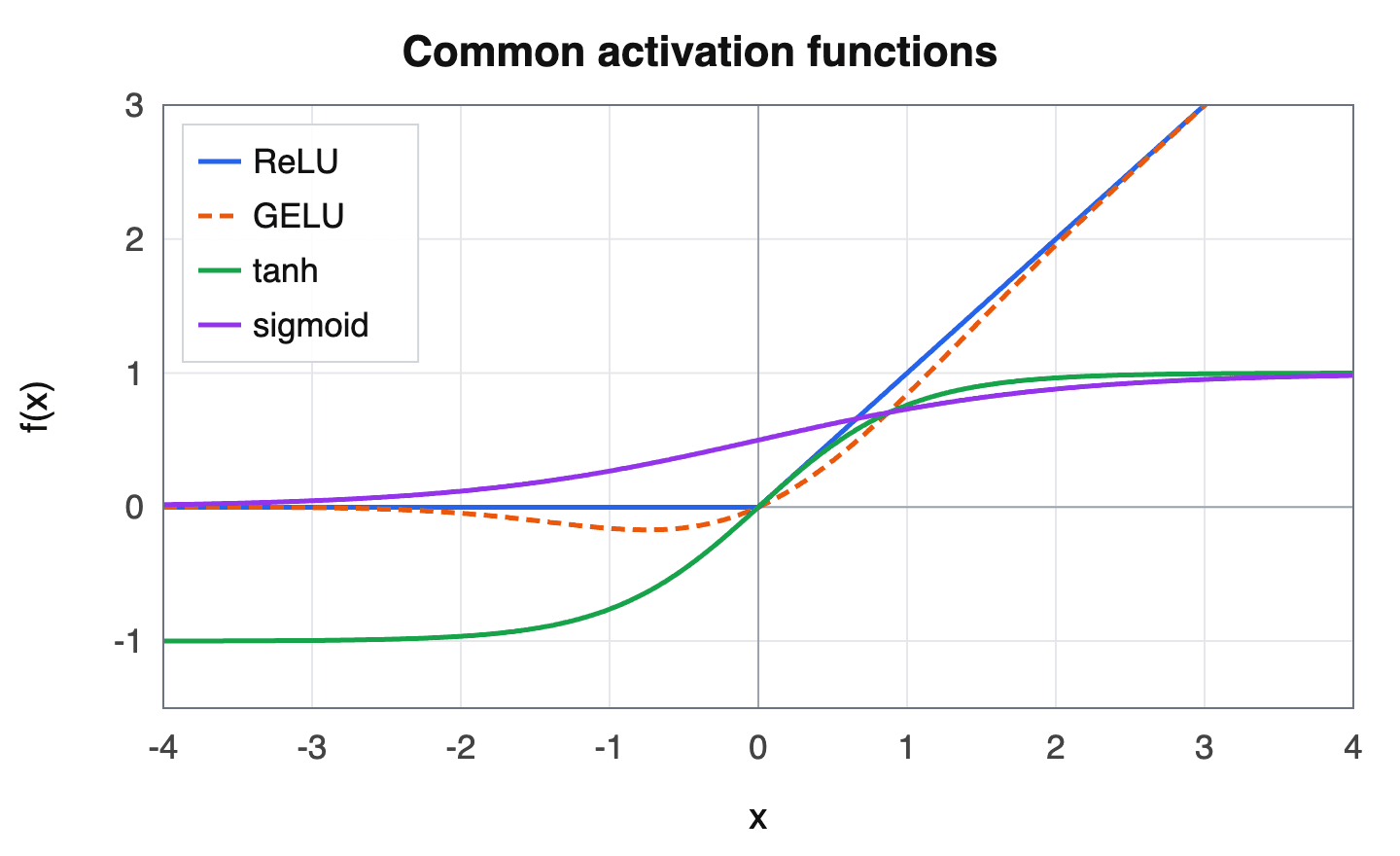

The activation function applied at the output layer is distinct from the activations used in hidden layers. Hidden layers typically use ReLU, Leaky ReLU, or similar nonlinearities to introduce representational capacity. The output activation, by contrast, is chosen to shape the output into the correct format for the task.

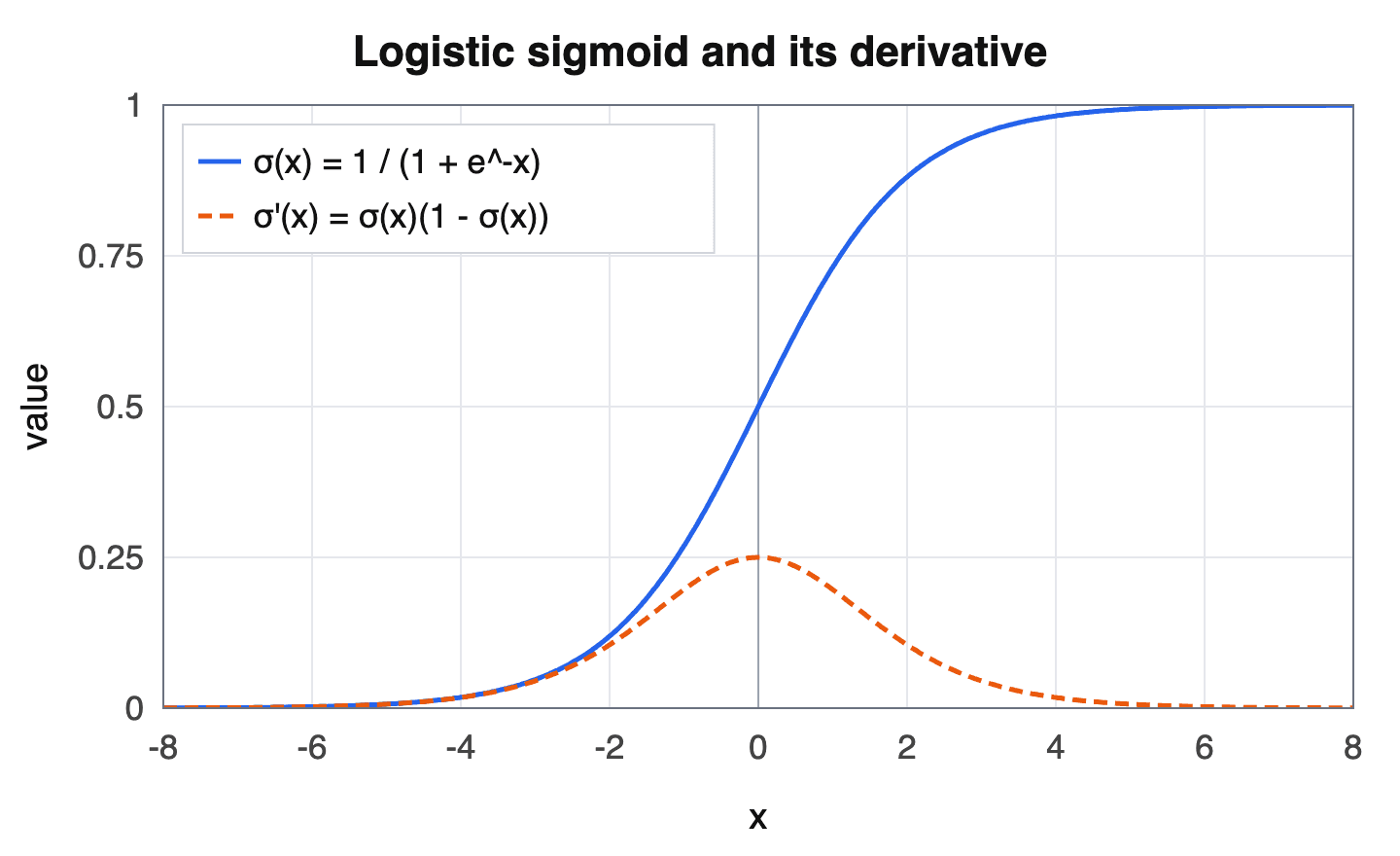

The sigmoid function maps any real number to a value between 0 and 1:
sigma(z) = 1 / (1 + exp(-z))
It is computationally simple and produces outputs that can be directly interpreted as probabilities. The derivative of the sigmoid function is sigma(z) * (1 - sigma(z)), which reaches a maximum value of 0.25 at z = 0 and approaches zero for large positive or negative inputs. This means gradients can become very small when the output is near 0 or 1, a phenomenon known as the vanishing gradient problem. However, when sigmoid is paired with binary cross-entropy loss, the gradient of the loss with respect to the pre-activation logit simplifies to (y_hat - y), which avoids the saturation issue.
The softmax function generalizes the sigmoid to multiple outputs. Given a vector of K logits, it normalizes them into a probability distribution where each output is in (0, 1) and all outputs sum to 1. The exponential in the formula amplifies differences between logits, so the largest logit receives a disproportionately high probability.
Softmax has a useful numerical property: it is invariant to adding a constant to all logits. That is, softmax(z + c) = softmax(z) for any constant c. In practice, implementations subtract the maximum logit value before computing exponentials to avoid numerical overflow (the "log-sum-exp trick").
Softmax is the standard choice when exactly one class must be selected from a set of mutually exclusive options.
The linear activation function simply returns its input unchanged:
f(z) = z
The output range is unbounded: (-infinity, +infinity). This makes it suitable for regression tasks where the target can take any real value. A linear output is computationally efficient because it adds no extra nonlinearity. The gradient of the linear activation is a constant (1), which simplifies the backpropagation calculation.
The hyperbolic tangent (tanh) function maps inputs to the range (-1, 1):
tanh(z) = (exp(z) - exp(-z)) / (exp(z) + exp(-z))
It is centered at zero, unlike sigmoid which is centered at 0.5. Tanh is less common at the output layer than sigmoid or softmax but appears in specific situations. It is commonly used in the generators of generative adversarial networks (GANs), where training images are normalized to the [-1, 1] range. The DCGAN paper by Radford et al. (2016) established tanh as a best practice for generator output layers.
| Activation function | Formula | Output range | Typical use case |
|---|---|---|---|
| Linear (identity) | f(x) = x | (-inf, +inf) | Regression |
| Sigmoid | f(x) = 1 / (1 + exp(-x)) | (0, 1) | Binary classification, multi-label classification |
| Softmax | f(x_i) = exp(x_i) / sum(exp(x_j)) | (0, 1); sum = 1 | Multi-class classification |
| Tanh | f(x) = (exp(x) - exp(-x)) / (exp(x) + exp(-x)) | (-1, 1) | Image generation (GANs), autoencoders with normalized inputs |
| ReLU | f(x) = max(0, x) | [0, +inf) | Regression with non-negative outputs |
The output activation and the loss function must be paired correctly. A mismatched combination can prevent the model from learning effectively or cause numerical instability during training.
The mathematical reason for careful pairing is that certain activation-loss combinations produce clean, well-behaved gradients during backpropagation. For example, combining softmax with categorical cross-entropy yields a gradient of (predicted - actual), which is simple and numerically stable. Combining softmax with MSE, on the other hand, produces a gradient that involves the derivative of softmax, which can be close to zero and slow down training significantly.
| Activation | Recommended loss | Why it works |
|---|---|---|
| Sigmoid | Binary cross-entropy | Gradient simplifies to (predicted - actual); avoids saturation issues |
| Softmax | Categorical cross-entropy | Gradient simplifies to (predicted - actual) across all classes |
| Linear | Mean squared error | Direct quadratic penalty on prediction error; gradient is 2 * (predicted - actual) |
| Tanh | MSE or specialized GAN losses | Matches [-1, 1] output range for normalized image data |
Using the wrong pairing is a common beginner mistake. For instance, using MSE with a sigmoid output for classification leads to slow convergence because the sigmoid derivative term sigma(z) * (1 - sigma(z)) appears in the gradient, and this value approaches zero when predictions are near 0 or 1. Cross-entropy, by contrast, provides strong gradients precisely when the model's predictions are most wrong, enabling faster correction.
The standard softmax function can be modified with a temperature parameter T that controls the "sharpness" of the output distribution:
softmax(z_i / T) = exp(z_i / T) / sum(exp(z_j / T) for j = 1 to k)
When T = 1, the output is identical to standard softmax. The temperature parameter has the following effects:
| Temperature value | Effect on distribution | Use case |
|---|---|---|
| T = 1 | Standard softmax behavior | Normal training and inference |
| T < 1 | Sharper distribution (more confident) | Greedy decoding in language models |
| T > 1 | Smoother distribution (more uniform) | Knowledge distillation, creative text generation |
| T approaches 0 | Approaches argmax (one-hot) | Deterministic selection |
| T approaches infinity | Approaches uniform distribution | Maximum randomness |
Temperature scaling is widely used in large language models. APIs for models like GPT-4 and Claude expose a temperature parameter that controls the randomness of text generation. Lower temperatures produce more focused and deterministic outputs, while higher temperatures produce more diverse and creative (but potentially less coherent) outputs.
Temperature scaling also plays a role in knowledge distillation, as described by Hinton, Vinyals, and Dean (2015). In knowledge distillation, a smaller "student" model learns to mimic the output distribution of a larger "teacher" model. Using a high temperature softens the teacher's output distribution, exposing the relative probabilities of non-target classes (the "dark knowledge"), which helps the student learn more effectively than training on hard labels alone.
A well-calibrated model produces probability estimates that match the true likelihood of correctness. If a calibrated model assigns 80% probability to a class, that prediction should be correct approximately 80% of the time across many such predictions.
Guo et al. (2017) demonstrated that modern deep neural networks are poorly calibrated compared to older, smaller architectures. Networks trained with batch normalization, high capacity, and low weight decay tend to be overconfident: they assign high probabilities even to incorrect predictions. For example, on CIFAR-100, a small LeNet-5 network is well-calibrated but has low accuracy, while a deep ResNet has high accuracy but produces overconfident probability estimates.
This overconfidence arises because, after the model correctly classifies most training samples, further training minimizes the loss function by increasing the confidence of predictions rather than improving correctness. The increased model capacity of modern architectures amplifies this effect.
Several post-hoc calibration methods adjust the output layer's probabilities without retraining the model:
| Method | Description | Parameters |
|---|---|---|
| Temperature scaling | Divides logits by a learned temperature T before softmax | 1 (the temperature T) |
| Platt scaling | Fits a logistic regression on the output logits | 2 (slope and intercept) |
| Isotonic regression | Fits a non-decreasing step function to map scores to calibrated probabilities | Variable |
| Histogram binning | Groups predictions into bins and assigns each bin the empirical accuracy | Number of bins |
Temperature scaling is the simplest and often sufficient. It learns a single parameter T > 0 on a validation set. Because the temperature does not change the ranking of the logits, it preserves the model's accuracy while improving calibration. Platt scaling, originally proposed by John Platt in 1999 for calibrating support vector machine outputs, fits a two-parameter logistic regression model on top of the classifier's raw scores and is particularly useful for models that do not naturally output probabilities.
The output layer takes different forms depending on the neural network architecture and the task it is designed to solve.
In a standard feedforward neural network (also called a multilayer perceptron), the output layer is a fully connected (dense) layer that receives inputs from the last hidden layer. Each output neuron is connected to every neuron in the preceding layer. The activation function is chosen based on the task type as described in the tables above.
In convolutional neural networks (CNNs) used for image classification, the output layer is typically a fully connected layer that follows one or more convolutional and pooling layers. The final convolutional feature maps are flattened (or passed through global average pooling) and then fed into the dense output layer with softmax activation.
For other computer vision tasks, the output layer structure changes:
| Computer vision task | Output layer structure | Example architecture |
|---|---|---|
| Image classification | Dense layer with softmax, k neurons | AlexNet, ResNet, VGG |
| Object detection | Two heads: class probabilities (softmax) + bounding box coordinates (linear) | YOLO, Faster R-CNN |
| Semantic segmentation | Convolutional layer producing k feature maps (one per class per pixel) | U-Net, DeepLab, FCN |
| Instance segmentation | Class head + box head + mask head | Mask R-CNN |
In object detection networks, the output layer is split into multiple "heads" that solve different sub-tasks simultaneously. The classification head uses softmax to predict object classes, while the regression head uses linear activation to predict bounding box coordinates (x, y, width, height). Both heads share the same backbone feature extractor but produce different types of outputs. This multi-head design is also used in instance segmentation models like Mask R-CNN, which adds a third branch with per-pixel sigmoid activations for segmentation masks.
In recurrent neural networks (RNNs) and LSTM networks, the output layer can operate in two modes:
In sequence-to-sequence models (such as those used for machine translation), the encoder RNN compresses the input into a fixed-length context vector, and the decoder RNN produces an output at each time step using a softmax layer over the target vocabulary. The decoder's output at each step is also fed back as input to the next step during generation. The return_sequences parameter in frameworks like Keras controls whether the RNN returns only the final output or outputs at every time step.
In transformer-based language models, the output layer is often called the "language model head" (LM head). It consists of a linear projection that maps the final hidden state from the transformer blocks into a vector of logits with dimension equal to the vocabulary size. For example, GPT-2 projects from a 768-dimensional hidden state to 50,257-dimensional logits (one per token in the vocabulary). These logits are then passed through softmax to obtain next-token probabilities.
The formula for the LM head can be written as:
logits = LayerNorm(h_final) * W_vocab
where h_final is the last hidden state and W_vocab is the vocabulary projection matrix.
Many transformer models use weight tying, where the output projection matrix is the transpose of the token embedding matrix. This technique, proposed by Press and Wolf (2017), reduces the total number of parameters and often improves performance. The intuition is that tokens with similar meanings should have similar embeddings and similar output probabilities. Weight tying creates a symmetry between how tokens are represented as inputs and how they are predicted as outputs.
In generative adversarial networks (GANs), the two sub-networks have different output layers:
The DCGAN paper by Radford, Metz, and Chintala (2016) established several best practices for GAN output layers that remain influential: use tanh in the generator's output layer, use strided convolutions instead of pooling, and apply batch normalization in both generator and discriminator networks.
In autoencoders, the decoder's output layer must match the dimensionality and value range of the original input data. For image reconstruction, this means the output layer produces a tensor with the same height, width, and number of channels as the input image. Sigmoid activation is common when pixel values are in [0, 1]; linear activation is used for unbounded data.
In variational autoencoders (VAEs), the decoder's output layer serves the same reconstruction purpose. The decoder outputs the parameters of a probability distribution (for example, the mean of a Bernoulli distribution for each pixel), and the reconstruction loss is formulated as a negative log-likelihood. The total VAE loss also includes a KL divergence regularization term that shapes the latent space, as described by Kingma and Welling (2014).
Some tasks require a network to produce multiple distinct outputs simultaneously. For example, a model might need to both classify an image and predict the bounding box of the main object. These multi-output models (also called multi-head models) share a common backbone of layers but split into separate output branches (heads) near the end of the network.
Each head has its own output layer with an activation function and loss function appropriate to its specific task. During training, the individual losses from each head are combined into a weighted sum:
L_total = w_1 * L_classification + w_2 * L_regression + ...
The weights w_1, w_2, and so on control the relative importance of each task. Setting these weights is an important hyperparameter decision. Multi-head architectures are especially effective when the tasks share underlying features that benefit from joint learning, a phenomenon known as multi-task learning.
Examples of multi-output architectures include:
The output layer is where gradient computation begins during backpropagation. Understanding how gradients flow through the output layer helps explain why certain activation-loss pairings work well and others do not.
One reason cross-entropy loss is preferred over MSE for classification tasks is its interaction with sigmoid and softmax activations. The gradient of cross-entropy loss with respect to the pre-activation logits simplifies to:
dL/dz = y_hat - y
where y_hat is the predicted probability and y is the true label. This simple gradient does not depend on the derivative of the activation function, which means it avoids the saturation problem (gradients approaching zero when the activation is near 0 or 1). In contrast, using MSE with sigmoid activation produces gradients that include the sigmoid derivative term sigma(z) * (1 - sigma(z)), which approaches zero for large or small z values, causing slow learning.
While the vanishing gradient problem is most commonly discussed in the context of hidden layers in deep networks, it can also affect the output layer when the wrong activation-loss pairing is used. When MSE loss is combined with sigmoid activation, the gradient includes the sigmoid derivative, which has a maximum value of 0.25 and drops to near zero for extreme inputs. This means the model learns very slowly when it makes confident incorrect predictions, which is precisely when it should be learning the fastest. Cross-entropy loss solves this problem because its gradient does not include the sigmoid derivative.
Proper weight initialization matters for the output layer, though the considerations differ slightly from hidden layers.
Xavier initialization, proposed by Glorot and Bengio (2010), sets weights from a distribution with variance 2 / (n_in + n_out), where n_in and n_out are the number of input and output units. It was designed for layers with sigmoid or tanh activation and aims to keep activation variance consistent during the forward pass and gradient variance consistent during the backward pass.
He initialization, proposed by He et al. (2015), sets weights from a distribution with variance 2 / n_in. It was designed for layers with ReLU activation, compensating for the fact that ReLU zeros out approximately half the inputs on average. Since the output layer rarely uses ReLU, He initialization is more commonly applied to hidden layers.
For the output layer specifically, initializing the bias to zero is standard practice. However, for sigmoid outputs in binary classification with class imbalance, some practitioners initialize the output bias to log(p / (1 - p)) where p is the prior probability of the positive class in the training set. This ensures the model starts with predictions close to the base rate rather than 0.5, which can speed up early training when the classes are highly imbalanced.
Misconfiguring the output layer is one of the top causes of poor model performance, even when the hidden layers are well designed. Below are common mistakes and their consequences.
| Mistake | Consequence | Fix |
|---|---|---|
| Using softmax for a regression task | Output is forced to sum to 1; meaningless for continuous predictions | Use linear activation |
| Using softmax for multi-label classification | Only one label can dominate; labels are treated as mutually exclusive | Use sigmoid on each output neuron independently |
| Using MSE loss with sigmoid output | Gradient vanishing when predictions are near 0 or 1; slow convergence | Use binary cross-entropy loss |
| Wrong number of output neurons | Shape mismatch error or incorrect predictions | Match neurons to task requirements |
| Missing activation function on the output layer | Raw logits treated as probabilities or class labels | Add the appropriate activation |
| Using ReLU on the output layer for regression | Negative predictions are impossible; clipped to zero | Use linear activation |
| Not scaling target values to match output range | Target values outside the output activation's range; training fails to converge | Normalize targets to match the output range |
| Applying softmax in both the model and the loss function | Double softmax produces incorrect gradients and poor training | Use raw logits with a loss function that applies softmax internally (e.g., PyTorch nn.CrossEntropyLoss) |
Different deep learning frameworks handle the output layer and its interaction with the loss function in different ways.
In PyTorch, the output layer is defined as part of the model's nn.Module. For classification, nn.CrossEntropyLoss combines log-softmax and negative log-likelihood internally, so the output layer should produce raw logits (no softmax applied).
import torch
import torch.nn as nn
class Classifier(nn.Module):
def __init__(self, input_dim, hidden_dim, num_classes):
super().__init__()
self.hidden = nn.Linear(input_dim, hidden_dim)
self.relu = nn.ReLU()
# Output layer: raw logits, no activation
self.output = nn.Linear(hidden_dim, num_classes)
def forward(self, x):
x = self.relu(self.hidden(x))
return self.output(x) # logits
# nn.CrossEntropyLoss applies softmax internally
criterion = nn.CrossEntropyLoss()
In TensorFlow and Keras, the output layer activation is typically specified as a parameter in the final Dense layer:
import tensorflow as tf
# Multi-class classification
model = tf.keras.Sequential([
tf.keras.layers.Dense(128, activation='relu', input_shape=(784,)),
tf.keras.layers.Dense(10, activation='softmax') # output layer
])
model.compile(loss='categorical_crossentropy', optimizer='adam')
# Binary classification
model_binary = tf.keras.Sequential([
tf.keras.layers.Dense(128, activation='relu', input_shape=(784,)),
tf.keras.layers.Dense(1, activation='sigmoid') # output layer
])
model_binary.compile(loss='binary_crossentropy', optimizer='adam')
# Regression
model_reg = tf.keras.Sequential([
tf.keras.layers.Dense(128, activation='relu', input_shape=(10,)),
tf.keras.layers.Dense(1) # linear output by default
])
model_reg.compile(loss='mse', optimizer='adam')
| Framework | Convention | Reason |
|---|---|---|
| PyTorch | Output layer produces raw logits; softmax is inside nn.CrossEntropyLoss | Numerical stability from the log-sum-exp trick |
| TensorFlow/Keras | Output layer often includes softmax explicitly; from_logits=True flag available | User convenience; explicit probability output |
| JAX/Flax | Output layer produces logits; softmax applied separately with jax.nn.softmax | Functional style; user controls composition |
The PyTorch convention of combining softmax and cross-entropy into a single operation (nn.CrossEntropyLoss) is numerically more stable than computing softmax and then taking the log separately. The combined computation uses the log-sum-exp trick to avoid floating-point overflow or underflow. TensorFlow/Keras supports this approach as well through the from_logits=True parameter in the loss function.
Several practical factors influence output layer design beyond the core task type:
Imagine you and your friends are playing a guessing game. One friend whispers a secret to the next friend, and that friend whispers to the next, and so on. Each friend changes the message a little bit as they pass it along. The last friend in the line has to say the answer out loud for everyone to hear. That last friend is like the output layer.
The output layer is the last step in a neural network. All the earlier layers (the "hidden layers") have been working together to figure out the answer, and the output layer's job is to take what they figured out and turn it into a final answer that makes sense.
If the question is "Is this a picture of a cat or a dog?", the output layer gives a number that means "I think it is a cat" or "I think it is a dog." If the question is "How much does this house cost?", the output layer gives a number like "$350,000."
The special rules the output layer uses (called activation functions) are like instructions about what format your answer should be in. If the teacher says "Write your answer as a percentage," you make sure your number is between 0 and 100. If the teacher says "Write any number you want," you can write anything. The output layer follows similar rules to make sure its answers come out in the right format.
