| Lumos NIX | |
|---|---|
| General information | |
| Manufacturer | Lumos Robotics |
| Country of origin | China |
| Year unveiled | 2025 |
| Status | Prototype |
| Price | ~$12,000 USD (estimated) |
| Availability | Not commercially available |
| Website | lumosbot.tech |

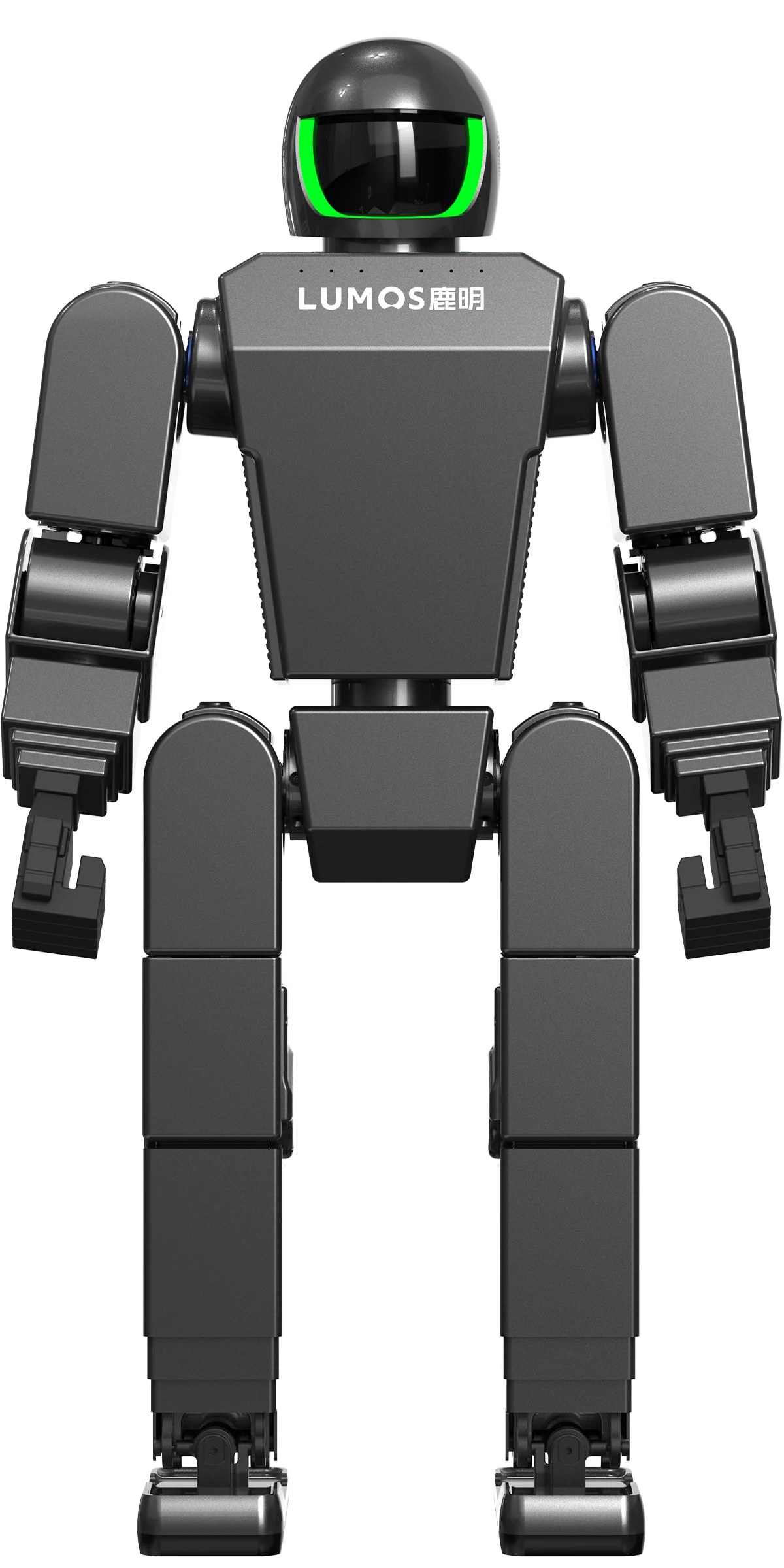

The Lumos NIX is a compact, child-sized humanoid robot developed by Lumos Robotics, a Shenzhen-based Chinese robotics startup founded in September 2024. Standing just 80 cm (2 ft 7.5 in) tall and weighing 20 kg (44 lb), NIX is the smallest humanoid platform in the Lumos product family and is designed for entertainment, education, home companionship, and light commercial service applications. Despite its diminutive stature, the robot is capable of performing highly dynamic maneuvers, including backflips, side flips, and martial arts routines that Lumos markets as "Kung Fu Mode," demonstrating control capabilities typically associated with much larger and more expensive platforms.[1][2]
NIX was first showcased at the World Robot Conference (WRC) 2025 in Beijing in August 2025, alongside the company's flagship Lumos LUS 2 full-size humanoid. It was subsequently demonstrated at the 27th China Hi-Tech Fair (CHTF) in Shenzhen in November 2025 and in a widely circulated "Kung Fu Mode" video released in December 2025.[3][4] At an estimated price point of approximately $12,000, NIX is positioned as one of the most affordable full humanoid robots on the market, bridging the gap between toy-grade robots and serious research or development platforms.
Within the Lumos Robotics product lineup, NIX serves as the compact bipedal complement to the full-size LUS 2 (160 cm, 57 kg) and the industrial-grade MOS (Hercules) wheeled dual-arm platform. While the LUS 2 targets research, industrial, and commercial applications at a price point near $99,000, and the MOS focuses on heavy-duty logistics and manufacturing, NIX addresses consumer-facing markets where approachability, safety, affordability, and indoor agility are the primary requirements.
Lumos Robotics (formally Lumos Robot Technology (Shenzhen) Co., Ltd.) was founded on September 6, 2024, in Bao'an District, Shenzhen, by Yu Chao, a Tsinghua University graduate with degrees in mathematics, energy and power engineering, and aerospace. Before founding Lumos, Yu accumulated over a decade of experience in embodied robotics research, development, and commercialization. He previously served as director of the Embodied Robot Laboratory (known as MagicLab) at Dreame Technology, where he led the teams responsible for the development and mass production of the Xiaomi CyberDog quadruped robot, overseeing the delivery of more than 1,000 units. During his time at Dreame, Yu is credited with creating the world's first backflipping embodied robot powered solely by electric drive.[5][6]
The core team at Lumos includes alumni from Tsinghua University, Shanghai Jiao Tong University, and the Chinese University of Hong Kong. Over 70% of the company's staff are dedicated to research and development, with more than 12 doctorate holders on the team. The CTO, Cao Junliang, holds a doctorate in mechanical engineering from Shanghai Jiao Tong University, and co-CTO Ding Yan holds an AI doctorate from SUNY and previously worked at the Shanghai AI Laboratory.[7]
Lumos Robotics progressed through multiple financing rounds within its first year of operation, raising a cumulative total of approximately RMB 200 million (around USD 28 million) across three angel rounds. Subsequent Pre-A1 and Pre-A2 rounds in December 2025, led by CDH Investments and Shenergy Chengyi Investment respectively, raised additional hundreds of millions of yuan. Strategic investors include Fosun Group and SenseTime.[5][7] Industry observers have described Lumos as "the most anticipated embodied intelligence start-up" to emerge in the humanoid space, noting that the company accomplished in under one year what competitors typically required several years to achieve.[8]
Lumos Robotics' product development followed an aggressive timeline. The company's first-generation humanoid, the LUS 1, was a 170 cm tall, 60 kg full-size platform with a maximum walking speed of 8 km/h. It served as a proof-of-concept for reinforcement learning-based balance recovery and high-speed motion control. The second-generation LUS 2, unveiled at WRC 2025, introduced a more compact full-size form factor (160 cm, 57 kg), proprietary actuators delivering 380 N.m of peak torque, visuotactile sensing, and NVIDIA Jetson AGX Orin computing (275 TOPS).[8]
NIX emerged as a parallel development effort to bring Lumos' core motion control and reinforcement learning technologies into a compact, consumer-accessible form factor. Where the LUS series targets professional and industrial markets, NIX targets families, schools, exhibition spaces, and commercial service venues where a smaller, lighter, less expensive robot is more practical and less intimidating. A Facebook post from Tsinghua University's official account noted that "in the past year, Lumos Robotics has launched 4 new robot products," referring to the LUS series, the MOS industrial platform, the NIX humanoid, and the LUX visuotactile hardware line.[9]
NIX stands 80 cm (approximately 2 feet 7.5 inches) tall and weighs 20 kg (44 lb), roughly the height of a two-year-old child. The robot's proportions are deliberately designed to appear friendly and approachable rather than imposing or utilitarian. This child-like stature serves several practical purposes: it reduces the risk of injury during human interaction, lowers the center of gravity for improved stability during dynamic movements, and makes the robot suitable for operation in constrained indoor environments such as homes, classrooms, retail spaces, and exhibition halls.
The robot features a bipedal locomotion system with two articulated legs, two articulated arms, and a head module housing cameras and other sensors. Unlike the industrial MOS (Hercules) platform from Lumos, which uses a wheeled mobile base for logistics and manufacturing applications, NIX walks on two legs in the same manner as the larger LUS series humanoids. This bipedal architecture enables NIX to navigate environments built for humans, including stepping over low obstacles and traversing uneven surfaces, though its primary intended operating domain is flat indoor floors.
The aesthetic design emphasizes rounded contours and a compact profile, distinguishing NIX from the more utilitarian appearance of research-grade humanoid platforms. Lumos has described the design philosophy as balancing technical capability with visual approachability, an important consideration for a robot intended to operate near children and in consumer-facing settings.
NIX's joints are powered by the Lumos 60-30 series of integrated joint modules, a proprietary actuator platform developed in-house by Lumos Robotics. These compact modules represent a scaled-down counterpart to the higher-torque actuators used in the LUS 2 and are specifically engineered for the mass and dynamic requirements of the smaller NIX platform.
The Lumos 60-30 module integrates multiple components into a single unit:
| Component | Specification |
|---|---|
| Motor type | High-performance brushless DC motor |
| Reducer | Self-developed planetary reducer (30:1 ratio) |
| Encoders | Dual absolute encoders for precise position and velocity feedback |
| Driver | Integrated driver supporting EtherCAT, CAN, and UART communication protocols |
| Rated torque | 22.8 N.m |
| Peak torque | 102 N.m |
| Maximum speed | 140 RPM at 48V |
| Dimensions | 64 x 58.5 mm (diameter x length) |
| Weight | 550 g per module |
The 30:1 planetary reduction ratio provides the torque multiplication necessary for dynamic bipedal locomotion, jumping, and acrobatic maneuvers while maintaining the compact dimensions required by NIX's small frame. The dual absolute encoder arrangement eliminates the need for homing routines after power cycling and provides redundant position feedback for safety-critical joint control loops. The integrated driver eliminates external motor controllers, reducing cabling complexity and overall system weight.[1][10]
For comparison, the LUS 2's flagship actuator delivers 380 N.m of peak torque with a torque density of 233 N.m/kg, reflecting its need to move a body nearly three times heavier than NIX. The Lumos 60-30's peak output of 102 N.m, while substantially lower in absolute terms, provides a comparable torque-to-weight ratio relative to NIX's 20 kg mass, enabling the dynamic maneuvers for which the robot is known.
NIX has an estimated total of approximately 21 degrees of freedom (DOF), distributed across the legs, arms, torso, and head. While Lumos has not published a complete DOF breakdown for NIX, the figure is consistent with the joint count of similarly sized humanoid robots and with video analysis of the robot's demonstrated range of motion.[1][11]
The leg joints are configured with multiple DOF per leg (typically including hip pitch, hip roll, hip yaw, knee, and ankle joints), providing the articulation necessary for bipedal walking, turning, squatting, and the explosive jumping motions required for backflips and kicks. The arms provide sufficient DOF for gesturing, basic object interaction, and the martial arts arm movements demonstrated in "Kung Fu Mode."
NIX integrates a perception system designed for indoor navigation and human interaction:
| Sensor | Function |
|---|---|
| Camera(s) | Visual perception, object recognition, navigation |
| IMU (Inertial Measurement Unit) | Balance estimation, orientation tracking, fall detection |
| Joint encoders (dual absolute) | Proprioceptive feedback for position and velocity |
The sensor suite supports the proprioceptive and exteroceptive feedback loops necessary for dynamic balance control, obstacle awareness, and basic environment understanding. The IMU is particularly critical for the robot's acrobatic capabilities, providing the high-frequency orientation data needed for mid-air attitude correction during flips and jumps.
Compared to the LUS 2, which includes an Intel RealSense D435i depth camera, 360-degree LiDAR, visuotactile finger and palm sensors, and joint torque sensors, NIX's sensor suite is more streamlined. This reflects both the robot's lower price point and its primary use cases, which do not require the high-precision manipulation sensing or long-range spatial mapping capabilities of the LUS 2.
NIX runs on an Intel/NVIDIA computing platform with a Linux-based operating system and full ROS (Robot Operating System) compatibility. The computing architecture handles sensor fusion, motion planning, reinforcement learning policy execution, and communication with external devices.
| Category | Specification |
|---|---|
| Compute platform | Intel/NVIDIA (comparable to NVIDIA Jetson Orin class) |
| Operating system | Linux |
| Middleware | ROS compatible |
| Connectivity | Bluetooth, Wi-Fi |
| Communication protocols | EtherCAT, CAN, UART (joint-level) |
| Voice interaction | Supported (voice dialogue and emotional response) |
| LLM integration | Potential support for voice-based tasks |
ROS compatibility enables researchers and developers to integrate NIX with the broader ROS ecosystem, including tools for simulation, motion planning, navigation, and computer vision. The Bluetooth and Wi-Fi connectivity supports remote monitoring, teleoperation, and integration with external computing resources for tasks that exceed the onboard processor's capabilities.
NIX also supports voice dialogue and emotional response capabilities, enabling it to serve as an interactive companion in home and educational settings. This social interaction layer complements the robot's physical capabilities, making it suitable for scenarios that combine movement and conversation.
NIX is powered by a lithium battery pack providing approximately 1.5 to 2 hours of runtime per charge under typical operating conditions. The exact battery capacity has not been publicly disclosed, but the runtime is consistent with a 48V system matched to the Lumos 60-30 actuator's operating voltage.
| Category | Specification | Value |
|---|---|---|
| Physical | Height | 80 cm (2 ft 7.5 in) |
| Physical | Weight | 20 kg (44 lb) |
| Mobility | Locomotion type | Bipedal |
| Mobility | Estimated degrees of freedom | ~21 |
| Mobility | Walking speed | 2-3 km/h (1.2-1.9 mph) |
| Actuation | Joint module | Lumos 60-30 |
| Actuation | Motor type | Brushless DC |
| Actuation | Reducer | Planetary (30:1 ratio) |
| Actuation | Rated torque | 22.8 N.m |
| Actuation | Peak torque | 102 N.m |
| Actuation | Max motor speed | 140 RPM at 48V |
| Actuation | Module dimensions | 64 x 58.5 mm |
| Actuation | Module weight | 550 g |
| Computing | Platform | Intel/NVIDIA |
| Computing | Operating system | Linux (ROS compatible) |
| Sensors | Vision | Camera(s) |
| Sensors | Inertial | IMU |
| Sensors | Proprioceptive | Dual absolute encoders per joint |
| Power | Battery runtime | 1.5-2 hours |
| Power | Battery voltage | 48V |
| Connectivity | Wireless | Bluetooth, Wi-Fi |
| Connectivity | Joint-level bus | EtherCAT, CAN, UART |
NIX's bipedal locomotion system achieves walking speeds of 2 to 3 km/h (1.2 to 1.9 mph), which is adequate for its intended indoor operating environments. The robot's low center of gravity and favorable torque-to-weight ratio, provided by the Lumos 60-30 actuators, contribute to stable walking on flat surfaces.
The balance control system builds on the same proprietary ultra-high-speed dynamic balance algorithms used across the Lumos product line. These algorithms, trained using reinforcement learning in simulation and transferred to hardware, process center-of-gravity adjustments at very high speeds, enabling rapid recovery from perturbations and stable execution of dynamic movements. On the larger LUS 2 platform, Lumos reports balance decision times of approximately 1 millisecond.[8] While specific latency figures for NIX have not been disclosed separately, the robot's demonstrated acrobatic capabilities suggest comparable control loop performance adapted for its lighter mass and shorter limbs.
The most widely publicized capability of NIX is its "Kung Fu Mode," a set of dynamic martial arts and acrobatic routines that the robot can execute through real-time whole-body motion control. Demonstrations released by Lumos in December 2025 showcased the following maneuvers:[2][4]
These acrobatic capabilities are achieved without external aids, safety harnesses, or post-production editing, according to Lumos. The underlying control relies on neural motion planning combined with reinforcement learning policies that map proprioceptive sensor inputs (joint positions, velocities, and IMU data) to motor commands in real time. The reinforcement learning policies are trained in physics simulation environments, where the virtual robot practices thousands of attempts under varied conditions (including randomized surface properties, initial poses, and perturbation forces), and then transferred to the physical hardware via sim-to-real transfer techniques.[2]
NIX's small size and light weight are advantages for acrobatic performance. The lower moment of inertia allows faster rotational movements, and the reduced impact forces during landing decrease the risk of mechanical damage. Yu Chao's background in creating the world's first electric-drive backflipping robot during his time at Dreame Technology directly informed the design of NIX's actuation and control systems for these dynamic maneuvers.
NIX supports voice dialogue and emotional response features, positioning it as an interactive social companion rather than a purely functional machine. The robot can engage in spoken conversation, respond to verbal commands, and display emotional cues through body language and head movements. These capabilities are enabled by onboard natural language processing and, potentially, integration with external large language model services via Wi-Fi connectivity.
The combination of physical agility and social interactivity makes NIX particularly well-suited for educational and entertainment contexts, where engagement and approachability are as important as raw technical capability.

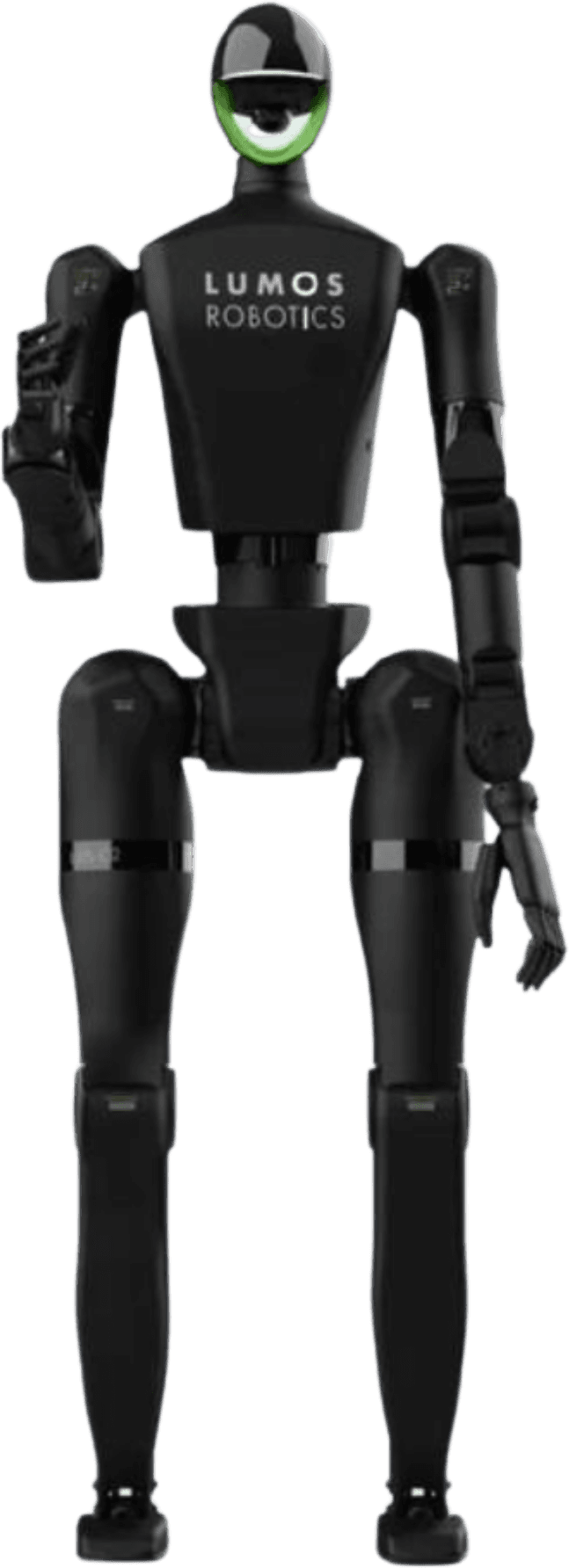

NIX and the LUS 2 represent two ends of Lumos Robotics' humanoid product spectrum. The following table highlights the key differences between the two platforms:
| Specification | Lumos NIX | Lumos LUS 2 |
|---|---|---|
| Height | 80 cm (2 ft 7.5 in) | 160 cm (5 ft 3 in) |
| Weight | 20 kg (44 lb) | 57 kg (125.7 lb) |
| Degrees of freedom | ~21 (estimated) | 28 |
| Walking speed | 2-3 km/h | 7.2 km/h (2 m/s) |
| Locomotion | Bipedal | Bipedal |
| Peak joint torque | 102 N.m (Lumos 60-30) | 380 N.m (custom actuator) |
| Torque density | Not disclosed | 233 N.m/kg |
| Actuator module | Lumos 60-30 | Custom high-power servo |
| Main processor | Intel/NVIDIA | NVIDIA Jetson AGX Orin (275 TOPS) |
| Depth camera | Camera(s) | Intel RealSense D435i |
| LiDAR | Not included | 360-degree solid-state |
| Tactile sensors | Not included | Visuotactile (fingers + palms, 0.06 mm resolution) |
| LLM integration | Potential | Yes |
| Stand-up speed | Fast recovery demonstrated | <1 second (prone to upright) |
| Notable capability | Backflips, Kung Fu Mode | 1-second stand-up, high-torque manipulation |
| Arm payload | Light interaction | 3 kg (single arm) |
| Battery runtime | 1.5-2 hours | ~2 hours |
| ROS compatibility | Yes | Yes (ROS 2) |
| Internal bus | EtherCAT/CAN/UART | EtherCAT |
| Target market | Entertainment, education, home | Research, industrial, commercial |
| Price | ~$12,000 (estimated) | ~$99,000 (estimated) |
| Status | Prototype | Pre-production |
The two platforms share Lumos' core technology stack, including reinforcement learning-based balance control, proprietary joint modules (scaled to each platform's mass), and Linux/ROS software architecture. However, they differ fundamentally in their intended applications and design trade-offs:
Lumos Robotics' product portfolio spans three distinct humanoid platforms and several supporting technology products. NIX occupies the consumer and education segment:
| Product | Form Factor | Height | Weight | Max Payload | Target Market | Approx. Price | Status |
|---|---|---|---|---|---|---|---|
| NIX | Compact bipedal humanoid | 80 cm | 20 kg | Light interaction | Entertainment, education, home | ~$12,000 | Prototype |
| LUS 2 | Full-size bipedal humanoid | 160 cm | 57 kg | 3 kg (single arm) | Research, industrial, commercial | ~$99,000 | Pre-production |
| MOS (Hercules) | Wheeled dual-arm humanoid | Not disclosed | Not disclosed | 50 kg (dual-arm) | Logistics, manufacturing | Not disclosed | Development |
| LUX-G gripper | Visuotactile end-effector | N/A | N/A | N/A | Manipulation research | Not disclosed | Available |
| Lumos 60-30 | Integrated joint module | 64 x 58.5 mm | 550 g | N/A | Component sales | Not disclosed | Available |
| FastUMI Pro | Data collection backpack | N/A | N/A | N/A | Robot training data | Not disclosed | Available |
The MOS (Hercules) series is the wheeled platform in the Lumos lineup. With a dual-arm load capacity of 50 kg, it fills a gap in the market where most competing dual-arm wheeled robots are limited to approximately 20 kg. Unlike NIX, which walks on two legs, the MOS uses a wheeled mobile base optimized for structured industrial environments such as warehouse aisles and factory floors.[8]
NIX competes in the emerging market segment of compact, affordable humanoid robots. While there are relatively few direct competitors at the sub-$15,000 price point for a bipedal humanoid, the following platforms provide relevant context:
| Feature | Lumos NIX | Unitree G1 | SoftBank NAO | Unitree R1 |
|---|---|---|---|---|
| Height | 80 cm | 132 cm | 58 cm | 120 cm |
| Weight | 20 kg | 35 kg | 5.4 kg | ~30 kg |
| Locomotion | Bipedal | Bipedal | Bipedal | Bipedal |
| DOF | ~21 | 23-43 | 25 | Not disclosed |
| Walking speed | 2-3 km/h | 7.2 km/h (2 m/s) | 2.5 km/h | Not disclosed |
| Acrobatics | Backflips, side flips, Kung Fu | Side flip, kick-up | None | Limited |
| Starting price | ~$12,000 | ~$16,000 | ~$9,000 (academic) | ~$5,900 |
| Primary market | Entertainment, education | Research, education | Education, research | Consumer, education |
| ROS support | Yes | Yes (ROS 2) | Yes | Yes |
| Status | Prototype | In production | In production | In production |
| Country | China | China | Japan/France | China |
NIX's competitive differentiation rests on several factors:
Acrobatic capability at low cost: No other humanoid robot in the sub-$15,000 price range has demonstrated backflips, side flips, or comparable acrobatic maneuvers. The Unitree G1, which can perform side flips, starts at $16,000 and weighs nearly twice as much.
Full humanoid form factor: Unlike simpler educational robots or desktop-scale platforms, NIX is a fully articulated bipedal humanoid with arms, legs, and a head, providing a complete platform for humanoid robotics education and entertainment.
Lumos technology stack: NIX benefits from the same reinforcement learning, neural motion planning, and proprietary actuator technologies that power the higher-end LUS 2 platform, scaled down to a more affordable package.
Approachable size: At 80 cm, NIX is tall enough to be taken seriously as a humanoid platform but small enough to be safe and non-threatening in consumer and educational environments.
However, NIX faces significant competitive challenges. As a prototype without commercial availability, it competes against platforms that are already in production and shipping to customers. The Unitree G1, with over 5,500 units shipped across the Unitree humanoid lineup by the end of 2025, has an established production track record, developer community, and extensive SDK support that NIX has not yet matched.[12] The Unitree R1, launched in 2025 at just $5,900, further pressures the affordable humanoid segment.
NIX's primary application domain is entertainment. The robot's acrobatic capabilities, including its signature Kung Fu Mode, make it a compelling attraction for exhibitions, trade shows, theme parks, cultural events, and retail environments. The December 2025 demonstration of flying kicks, backflips, and martial arts forms garnered significant media attention and demonstrated the robot's potential as a performance platform.[2][4]
Lumos has indicated plans to explore "deep integration of robots and the cultural tourism industry," and NIX's approachable size and dynamic movement capabilities make it a natural fit for interactive entertainment venues. The robot's ability to perform choreographed routines, combined with voice interaction, enables interactive show formats where NIX responds to audiences in real time.
NIX's combination of ROS compatibility, affordable pricing, and full humanoid form factor positions it as an educational platform for robotics and artificial intelligence instruction. Potential educational applications include:
The estimated price of $12,000, while not inexpensive, is within reach of university robotics departments and well-funded secondary school STEM programs, particularly compared to full-size humanoid platforms costing $90,000 or more.
Lumos positions NIX as a home companion robot, targeting families seeking an interactive, physically capable robot for daily life. The robot's child-like stature makes it suitable for domestic environments, and its voice interaction capabilities enable it to serve as a conversational companion, household assistant for simple tasks, and interactive entertainment system.
The home companion market for humanoid robots remains nascent. Practical challenges include limited battery life (1.5 to 2 hours), the difficulty of navigating cluttered home environments, and the gap between demonstration-ready capabilities and the reliability required for daily household use. NIX's current prototype status means these use cases remain aspirational rather than immediately deployable.
NIX has potential applications in commercial service settings, including:
These applications are common for service robots of various form factors, but NIX's bipedal locomotion and humanoid appearance offer a more engaging and human-like presence than wheeled service robots.
NIX's dynamic capabilities are enabled by locomotion and acrobatic policies trained using reinforcement learning in physics simulation environments. The training process follows a pipeline common to modern legged robots:
This approach allows Lumos to develop and iterate on control behaviors rapidly in simulation before committing to hardware testing. The same reinforcement learning methodology underpins the LUS 2's one-second stand-up capability and the broader Lumos product line's dynamic locomotion features.
Beyond reactive balance control, NIX employs neural motion planning for executing complex movement sequences such as the Kung Fu Mode routines. Neural motion planning uses learned neural network models to generate trajectories for the robot's joints that satisfy multiple objectives simultaneously: achieving the desired motion (such as a backflip), maintaining dynamic balance, respecting joint limits and torque constraints, and landing stably.
The combination of reinforcement learning for low-level balance and neural motion planning for high-level movement sequencing enables NIX to perform maneuvers that require precise coordination across all joints over multi-second time horizons, a significantly more complex control problem than steady-state walking.
The Lumos 60-30 joint module used in NIX is part of Lumos Robotics' broader investment in developing proprietary actuator technology. The company has also developed PEEK (polyether ether ketone) cycloidal reduction modules for the LUS 2 platform, achieving a 40% reduction in weight and a 60% improvement in torque density compared to conventional metal cycloidal drives.[7] While it is not confirmed whether PEEK components are used in the Lumos 60-30 modules for NIX, the broader actuator development program reflects Lumos' strategy of building competitive advantage through in-house hardware design rather than relying on off-the-shelf components.
Lumos offers its joint modules as standalone products for other robotics developers, indicating confidence in the modules' quality and commercial viability beyond the company's own robot platforms.
NIX has been showcased at several major events since its unveiling:
| Date | Event | Location | Highlights |
|---|---|---|---|
| August 2025 | World Robot Conference (WRC) 2025 | Beijing, China | Public debut alongside LUS 2; dance and movement demonstrations |
| November 2025 | 27th China Hi-Tech Fair (CHTF) | Shenzhen, China | Exhibition demonstration; emphasis on bipedal stability and agile indoor motion |
| December 2025 | "Kung Fu Mode" video release | Online (social media) | Flying kick backflips, side flips, rolls, and martial arts routines; widely circulated on social media |
The December 2025 Kung Fu Mode demonstration attracted particular attention for showing a small humanoid robot performing acrobatic feats that were unprecedented for its size and price class. The video demonstrated real-time whole-body motion control without external aids or CGI enhancement, according to Lumos.[2][4]
Despite its impressive dynamic capabilities, NIX has several notable limitations:
NIX's trajectory will depend on Lumos Robotics' ability to transition the platform from prototype to commercial production. Several factors will influence its prospects:
Lumos Robotics' rapid pace of development (four products in its first year) and substantial funding (Pre-A rounds raising hundreds of millions of yuan) suggest that the company has the resources and technical capability to bring NIX to market. Whether it can do so quickly enough to establish a competitive position in an increasingly crowded field remains to be seen.
